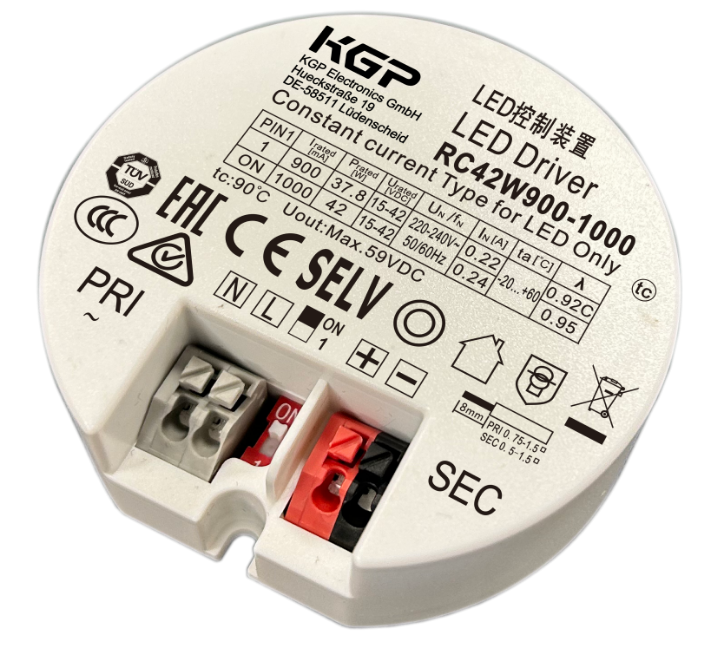

Tiny ON OFF DIP - RC36W800-850 / RC42W900-1000

Product Features

• Output type: Constant Current (SELV)
• Dimming interface: None (Non-dimmable)
• Output voltage: 15–42VDC
• No-load voltage: ≤59VDC
• Output current models:
  • RC36W800-850:
    • 800mA / 12–33.6W / PF ≥0.92 / Eff 87%
    • 850mA / 12.75–35.7W / PF ≥0.92 / Eff 88%
  • RC42W900-1000:
    • 900mA / 13.5–37.8W / PF ≥0.92 / Eff 88%
    • 1000mA / 15–42W / PF ≥0.95 / Eff 89%
• Max output power: 42W
• Output current accuracy: ±5%
• Ripple current: ±5%
• Startup delay time: ≤0.5s
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• THD: ≤15% @ 230VAC full load
• No-load power consumption: ≤0.5W
• Inrush current:
  • RC36W800-850: 30A / 400μs
  • RC42W900-1000: 32.2A / 564μs
• Noise level: Not specified

Environmental & Safety

• Operating temperature (Ta): –20°C to +60°C
• Storage temperature (Ts): –30°C to +85°C
• Max case temperature (Tc): 90°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• Over-temperature: Auto recovery
• Insulation voltage: I/P–O/P: 3kVAC / 1min
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <250μA
• Surge protection: L–N / 2kV
• RoHS compliance: 2011/65/EU
• Lifetime: 50,000h @ Ta/Tc
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Push-in terminal
• Installation type: Built-in
• Wire preparation:
  • PRI: 0.5–1.5mm² / 8mm strip
  • SEC: 0.5–1.5mm² / 8mm strip
• Dimensions: Ø64 × 25mm
• Max output wire length: 3m
• Breaker compatibility @230VAC:
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Secondary switching not permitted (except CV type)
  • Wiring must be protected against shorts to earth
  • Incorrect wiring may damage LED modules

Certifications & Standards

• Certifications: CE / CCC / TUV / EAC / SAA
• Safety standards:
  • EN61347-1:2015
  • EN61347-2-13:2014/A1:2017
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC standards:
  • EN IEC 55015:2019 / A11:2019
  • EN IEC 61000-3-2:2019
  • EN 61000-3-3:2013/A1:2019
  • EN61547:200
• Performance standard: EN62384
