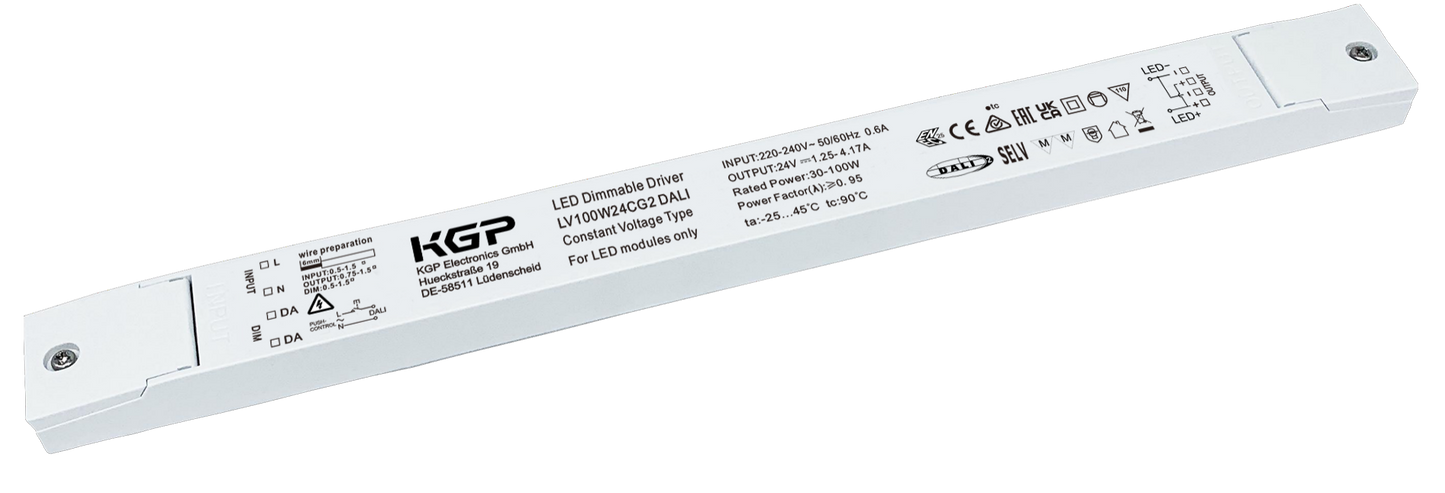

LV DALI

Product Features

• Output Type: Constant Voltage (SELV, Class II insulation)
• Current Range & Model Breakdown:
  • LV30W24CG2 DALI: 0.5–1.25A
  • LV60W24CG2 DALI: 1–2.5A
  • LV100W24CG2 DALI: 1.25–4.17A
  • LV150W24CG2 DALI: 1.875–6.25A
  • LV250W24CG2 DALI: 3.12–10.42A
• Output Voltage Range: 24VDC ±5%
• Max Output Voltage: 25.2VDC
• Efficiency:
  • LV30W: ≥85% (86% typ.)
  • LV60W: ≥86% (87% typ.)
  • LV100W–250W: ≥91% (92% typ.)
• Power Factor: ≥0.95
• THD:
  • LV30W & LV60W: ≤10%
  • LV100W–250W: ≤7%
• Voltage Ripple: <240mVPK-PK (0.5%)
• Start Delay Time:
  • <0.5s @ power switch on (no DALI)
  • <1s @ DALI system on
• No-load Power Consumption: ≤0.5W
• Current Accuracy: ±2%
• Flicker Metrics:
  • PstLM ≤1
  • SVM ≤0.4
• Protection Features:
  • Short Circuit: Auto recovery
  • Overload: 120–180%Io, Auto recovery
  • Over Voltage: 110–150%Vo, Auto recovery
  • Over Temperature: Tc 90–110°C, Auto recovery (100W–250W only)
• Surge Protection: L–N: 2kV
• Control Method:
  • DALI-2 certified (Parts 251, 252, 253, CLO)
  • PUSH dimming (max 20m lead, shared with DALI port)
  • Max 15 parallel connections for PUSH dim
  • Dimming Range: 1%–100%
  • Dimming Frequency: 2KHz
• Lifetime (@Ta max):
  • LV30W: ≥80K hrs
  • LV60W: ≥60K hrs
  • LV100W: ≥60K hrs
  • LV150W: ≥55K hrs
  • LV250W: ≥52K hrs
• MTBF: ≥250K hrs @ 25°C (MIL-HDBK-217F)
• Audible Noise: <28dB @ 15cm (all models)
• Warranty: 5 years (Failure rate <10%)

Environmental & Safety

• Operating Temperature (Ta): –25°C to +45°C
• Storage Temperature (Ts): –40°C to +85°C
• Max Case Temperature (Tc):
  • LV30W: 80°C
  • LV60W–250W: 90°C
• Humidity Range: 5%–85% RH (non-condensing)
• Atmospheric Pressure: 86–108kPa
• Insulation Voltage: I/P to O/P: 3kVac / 5mA / 1min
• Insulation Resistance: >100MΩ @ 500VDC
• Leakage Current: <0.7mA

Build & Installation

• Installation Type: Independent
• IP Rating: IP20
• Insulation Class: Class II
• Connection Method: Terminal block
• Cable Terminals:
  • Input: 1 terminal block
  • Output: 2 terminal blocks
  • Dimming: 1 terminal block
• Wire Preparation:
  • Input:
    • LV30W–150W: 0.5–1.5mm²
    • LV250W: 0.75–1.5mm²
  • Output: 2×0.75–1.5mm²
  • Dimming: 0.5–1.5mm²
• Maximum Output Wire Length: 3m
• Cable Diameter Range:
  • Input & Dimming: 2.2–4mm
  • Output: 2.2–4mm or 9.5–10.5mm
• Wiring Guidelines:
  • Keep mains leads separate from LED and signal wires (5–10cm spacing)
  • Secondary switching not permitted (except for constant voltage)
  • Wiring must be protected against short circuits to earth
  • Keep connections short to ensure good EMI behavior
• Dimensions by Model:
  • LV30W: 300 × 30 × 16mm
  • LV60W–150W: 350 × 30 × 18mm
  • LV250W: 400 × 40 × 22mm

Certifications & Standards

• Certifications: ENEC, CE, SAA, UKCA
• Safety Standards:
  • EN 61347-1:2015/A1:2021
  • EN 61347-2-13:2014/A1:2017
  • EN IEC 62384:2020
  • EN 62493:2015
  • AS 61347.2.13:2018
  • AS/NZS 61347.1:2016 Inc A1
  • BS EN equivalents for UKCA
• EMC Standards:
  • EN IEC 55015:2019 / A11:2020
  • EN IEC 61000-3-2:2019 / A1:2021
  • EN 61000-3-3:2013 / A2:2021
  • EN 61547:2009
  • EMC for UKCA (BS EN equivalents)
• Performance Standards:
  • EN 62384
  • IEC 62386-101 Ed.2.0
  • BS EN 62386-102:2014
  • BS EN 62386-207:2009
  • DALI Parts 251, 252, 253
• RoHS Compliance: 2011/65/EU
