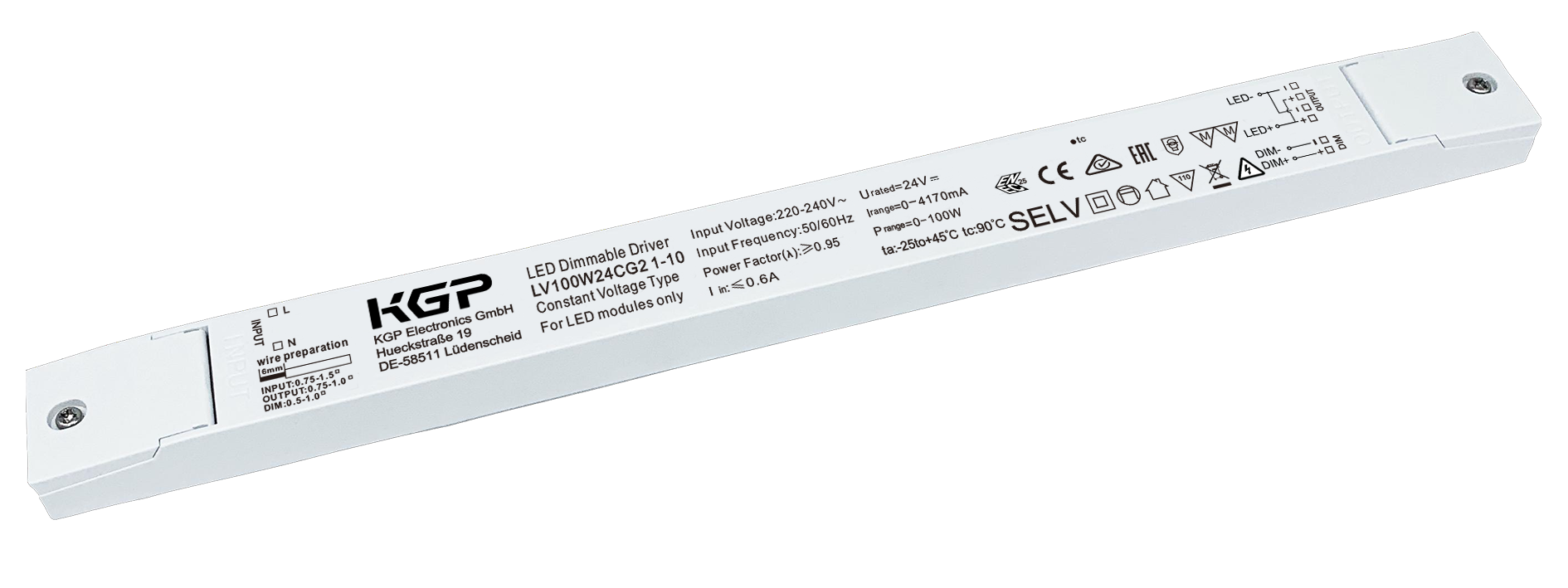

LV 1-10V Series - LV100W / LV150W / LV250W24CG2 1-10

Product Features

• Output type: Constant Voltage (SELV)
• Dimming interface: 3-in-1 (1–10VDC, PWM signal, Resistance)
• Output voltage: 24VDC ±5%
• No-load voltage: 24VDC ±5%
• Output current range:
  • LV100W: 0–4.17A
  • LV150W: 0–6.25A
  • LV250W: 0–10.42A
• Output power range:
  • LV100W: 0–100W
  • LV150W: 0–150W
  • LV250W: 0–250W
• Max input power:
  • LV100W: ≤115W
  • LV150W: ≤168W
  • LV250W: ≤275W
• Efficiency (typical @ 230VAC full load):
  • LV100W: 92%
  • LV150W: 93%
  • LV250W: 93%
• Power factor: ≥0.95
• THD: ≤7% @ 230VAC full load
• Ripple voltage: <240mVp-p
• Line regulation: ±1%
• Load regulation: ±2%
• Flicker: SVM ≤0.4, PstLM ≤1.0
• Overshoot: <105%Vo
• Startup delay time: ≤0.5s
• Standby power: ≤0.5W (Dim-to-off)
• Hold-up time:
  • LV100W: 9.2ms
  • LV150W: 10ms
  • LV250W: 16.2ms
• Turn-off time:
  • LV100W: 69.6ms
  • LV150W: 384ms
  • LV250W: 676ms
• Dimming range: 1%–100% (Dim-to-off)
• Dimming frequency: 1.38kHz
• Noise level: ≤28dB @ ≥15cm (background ≤18dB)

Environmental & Safety

• Operating temperature (Ta): –25°C to +45°C
• Storage temperature (Ts): –40°C to +85°C
• Max case temperature (Tc): 90°C
• Humidity range: 5%–85% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Over-current: 120%–180%Io, Auto recovery
  • Over-voltage: 110%–150%Vo, Auto recovery
• Over-temperature: 90°C < Tc < 110°C, Auto recovery
• Insulation voltage: I/P–O/P: 3000VAC / 5mA / 1min
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <250μA
• Surge protection: L–N / 2kV
• RoHS compliance: 2011/65/EU
• MTBF: ≥250,000h @ Ta = 25°C (MIL-HDBK-217F)
• Lifetime (@ Ta max):
  • LV100W: ≥60,000h
  • LV150W: ≥55,000h
  • LV250W: ≥52,000h
• Warranty: 5 years (F.R. < 10%)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Terminal block
• Installation type: Independent
• Wire preparation:
  • Input: 0.75–1.5mm²
  • Output:
    • LV100W/150W: 2 × 0.75–1.0mm²
    • LV250W: 2 × 0.75–1.5mm²
  • Dimming:
    • LV100W/150W: 1 × 0.5–1.0mm²
    • LV250W: 1 × 0.5–1.5mm²
• Cable stripping length: 6mm
• Max output cable length: 3m
• Cable diameter range:
  • Input: 2.2–4mm or 9.5–10.5mm
  • Output & Dimming: 2.2–4mm
• Dimensions:
  • LV100W/150W: 350 × 30 × 18mm
  • LV250W: 400 × 40 × 22mm
• Breaker compatibility @230VAC:
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Secondary switching not permitted (except CV type)
  • Wiring must be protected against shorts to earth
  • Incorrect wiring may damage LED modules

Certifications & Standards

• Certifications: CE / ENEC / SAA
• Safety standards:
  • EN61347-1:2015 / A1:2021
  • EN61347-2-13:2014 / A1:2017
  • EN62384:2020
  • EN62493:2015
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC standards:
  • EN IEC 55015:2019 / A11:2020
  • EN IEC 61000-3-2:2019 / A1:2021
  • EN 61000-3-3:2013 / A2:2021
  • EN61547:2009
• Performance standard: EN62384
