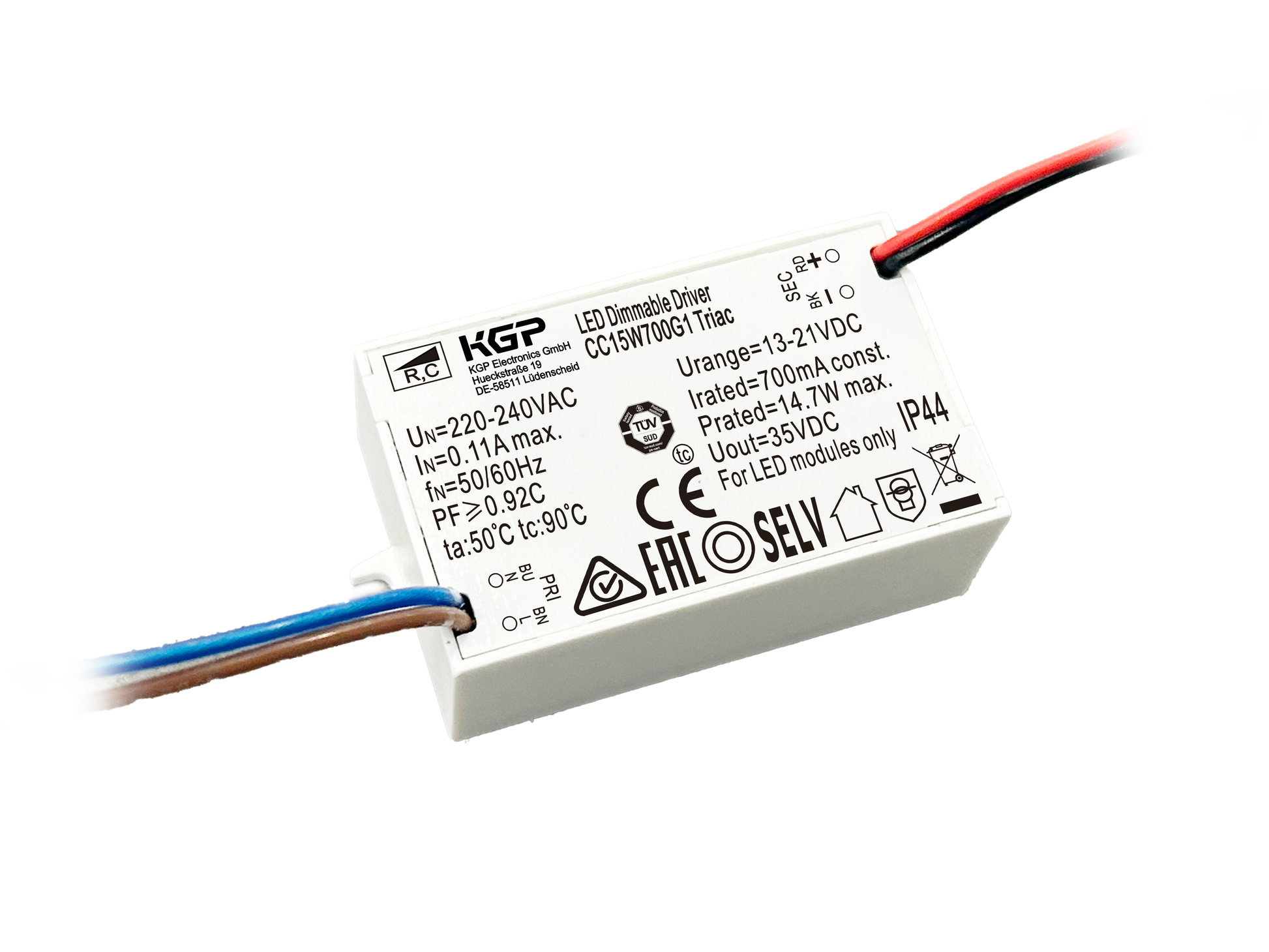

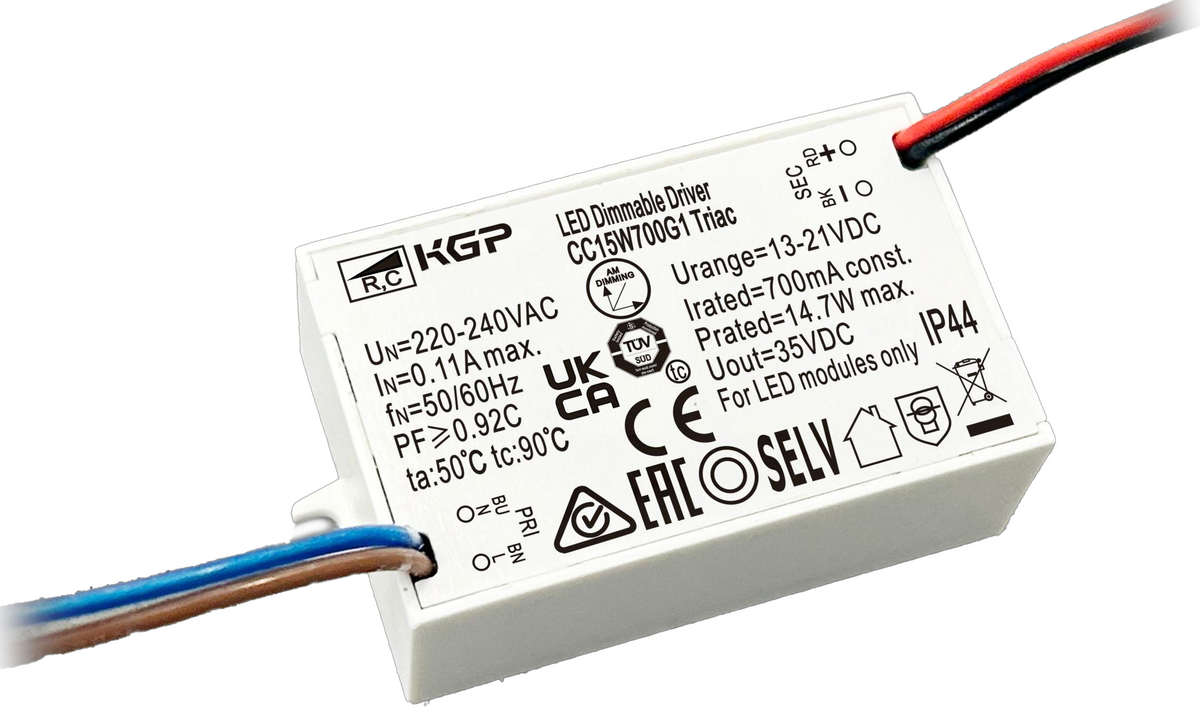

Tiny Square Triac - CC15WXXXG1 Triac

Product Features

• Output type: Constant Current (SELV)
• Dimming interface: Phase dimming (Triac – leading/trailing edge)
• Dimming range: 5%–100%
• Output current models:
  • CC15W300G1: 300mA / 32–48V / 9.6–14.4W / PF ≥0.92 / Eff 83% / No-load ≤59V
  • CC15W350G1: 350mA / 27–42V / 9.45–14.7W / PF ≥0.92 / Eff 83% / No-load ≤59V
  • CC15W400G1: 400mA / 27–37V / 10.8–14.8W / PF ≥0.92 / Eff 83% / No-load ≤52V
  • CC15W500G1: 500mA / 19–30V / 9.5–15W / PF ≥0.92 / Eff 80.5% / No-load ≤45V
  • CC15W550G1: 550mA / 19–28V / 10.5–15.4W / PF ≥0.92 / Eff 78.5% / No-load ≤45V
  • CC15W600G1: 600mA / 13–21V / 7.8–12.6W / PF ≥0.92 / Eff 76% / No-load ≤35V
  • CC15W700G1: 700mA / 13–21V / 9.1–14.7W / PF ≥0.92 / Eff 78.5% / No-load ≤35V
• Max output power: 15.4W
• Output current accuracy: ±5% @ 350–700mA, ±10% @ 250mA
• Ripple current: ±5%
• Startup delay time: ≤1s
• No-load power consumption: ≤0.5W
• Inrush current: ≤8A / 40μs @ 230VAC
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• Noise level: ≤28dB @ ≥15cm (background ≤18dB)

Environmental & Safety

• Operating temperature (Ta): –20°C to +50°C
• Storage temperature (Ts): –25°C to +85°C
• Max case temperature (Tc): 90°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• Insulation voltage: I/P–O/P: 3750VAC / 5mA / 1min
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <0.7mA
• Surge protection: L–N / 1kV
• RoHS compliance: 2011/65/EU
• REACH compliance: EC No. 1907/2006
• Lifetime: 50,000h @ Ta/Tc
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP44
• Insulation class: Class II
• Connection method: Direct lead
• Installation type: Built-in
• Wire preparation:
  • PRI: 0.5–1.5mm²
  • SEC: 0.3–1.5mm²
• Dimensions: 68.2 × 36.1 × 23mm
• Breaker compatibility @230VAC (Inrush current: 8A / 40μs):
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Max output wire length: 0.5m
  • Secondary switching not permitted
  • Hot plug-in not supported (residual voltage risk)
  • Restart required after LED load connection
  • Wiring must be protected against shorts to earth
  • Do not install upside down

Certifications & Standards

• Certifications: CE / TÜV / EAC / SAA
• Safety standards:
  • EN61347-1:2015/A1:2021
  • EN61347-2-13:2014/A1:2017
  • EN IEC 62384:2020
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC standards:
  • EN IEC 55015:2019
  • EN IEC 55015:2019/A11:2020
  • EN IEC 61000-3-2:2019/A1:2021
  • EN 61000-3-3:2013/A2:2021
  • EN IEC 61547:2023
• Performance standard: EN62384

DOWNLOAD PRODUCT SHEET

DOWNLOAD SAA CERTIFICATE
