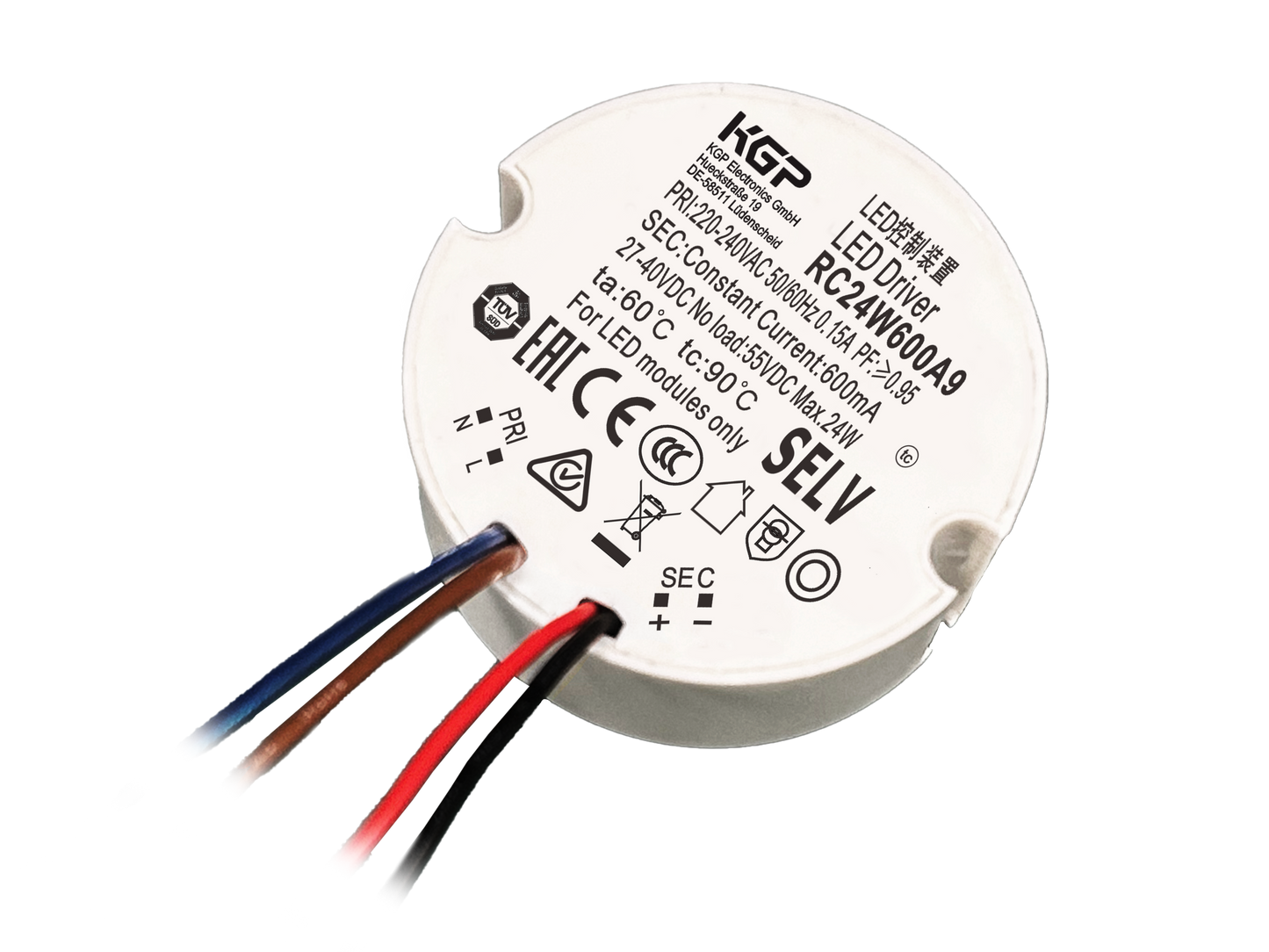

Tiny ON OFF IP44 Round - RC15WXXXA9, RC20WXXXA9, RC24WXXXA9

Product Features

• Models: RC15W700A9, RC15W750A9, RC15W800A9, RC20W700A9, RC20W750A9, RC20W800A9, RC24W700A9, RC24W750A9, RC24W800A9
• Output Type: Constant Current
• Power Range: 15W–24W
• Efficiency: Up to 88%
• PF: ≥0.92
• Current Accuracy: ±5%
• Startup Delay: ≤0.5s
• Ripple: ≤5%
• Lifetime: 50,000h @Ta=60°C
• Noise: ≤20dB

Environmental & Safety

• Operating Temp: -20°C to +60°C
• Storage Temp: -40°C to +85°C
• Max Case Temp: 90°C
• Humidity: 10%–90% RH
• RoHS Compliant
• Insulation Voltage: 3750V
• Leakage Current: <250μA
• THD: ≤15%
• Surge Protection: L-N/2KV

Build & Installation

• Input Voltage: 220–240VAC
• Frequency: 50/60Hz
• Connection: Direct lead, built-in
• Wire Prep: 0.5–1.5mm²
• Dimensions: Ø57 × 26mm
• Breaker Compatibility: TYPE B/C/D, 10–25A
• Wiring Notes: EMI spacing, 3m max output wire, no secondary switching

Certifications & Standards

• Certifications: TUV, CE, CB, SAA, CCC
• Safety: EN61347-1, EN61347-2-13
• EMC: EN55015, EN61547, EN61000-3-2, EN61000-3-3
• Performance: EN62384
• Warranty: 5 years
