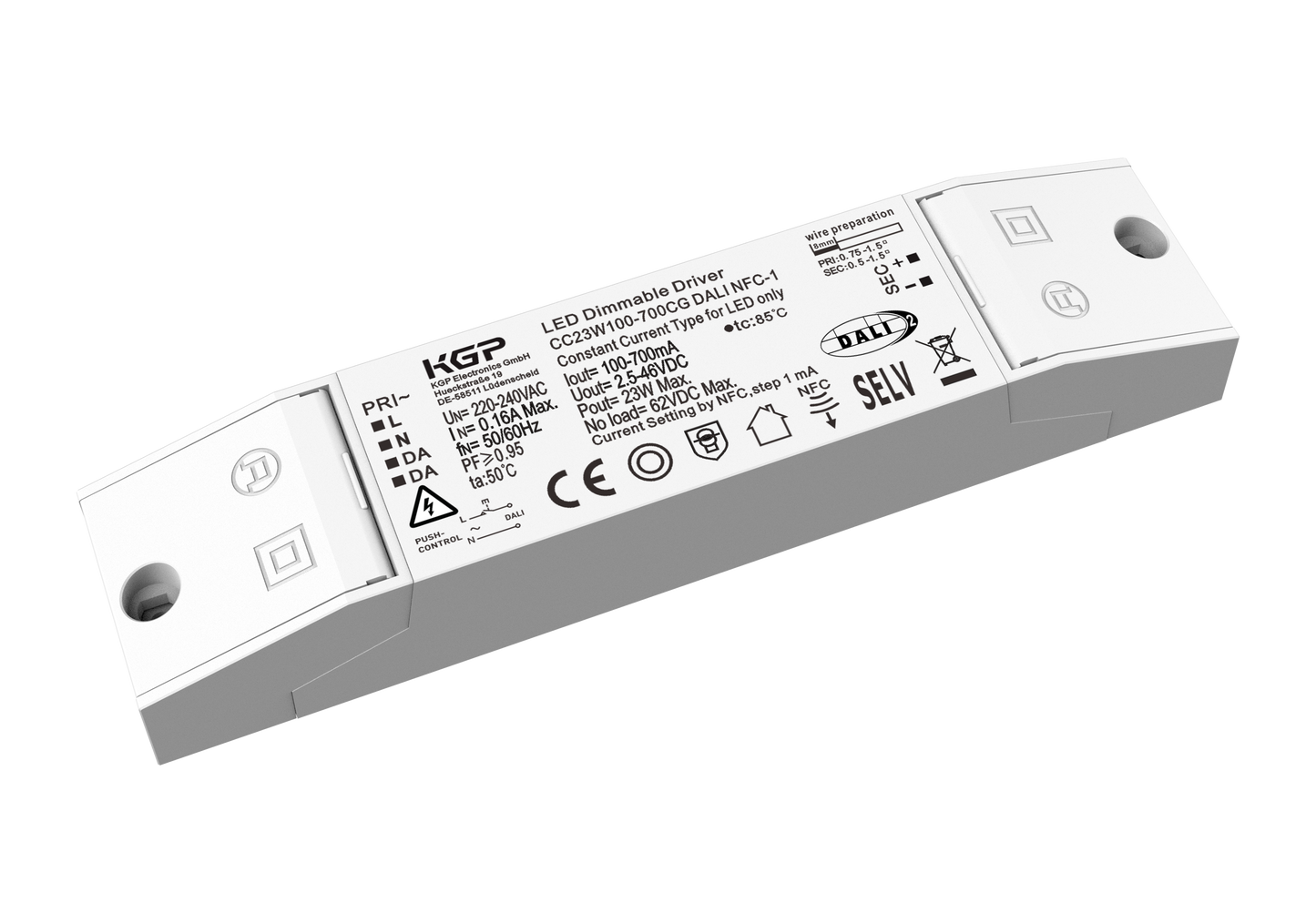

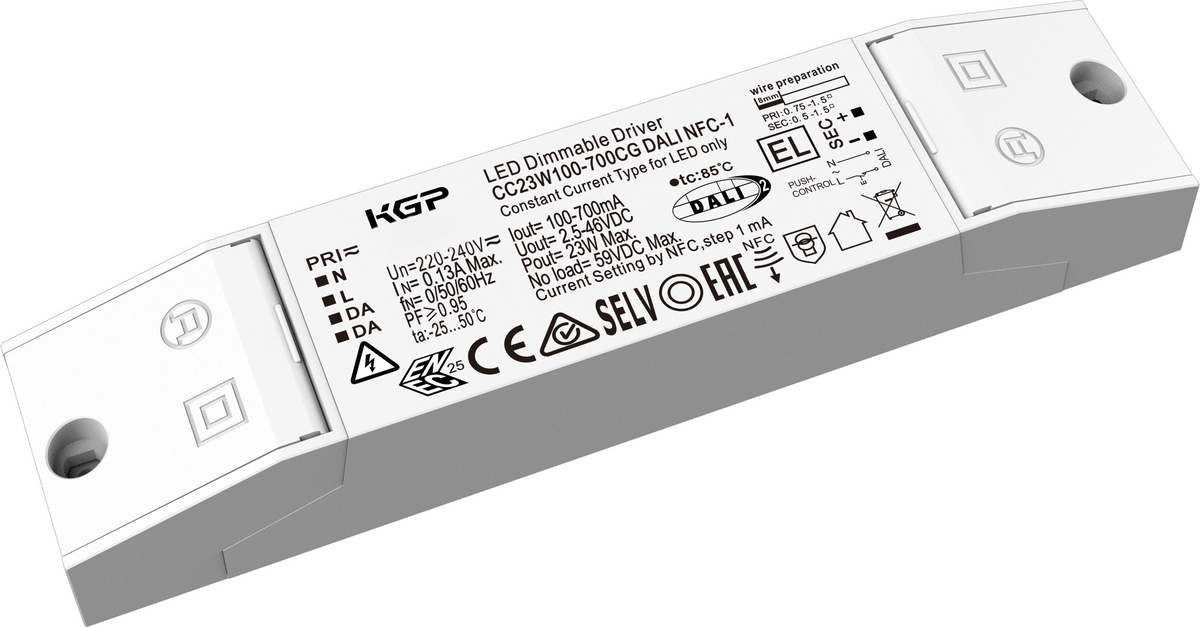

Super Slim NFC DALI - CC23W100-700CG DALI NFC-1

Product Features

• Output type: Constant Current (SELV)
• Dimming interface: DALI-2 / Push DIM
• Dimming range: 1%–100% (Dim to Off)
• Output current setting: 100–700mA (1mA steps via NFC)
• Output current models:
  • 100mA / 0.90–4.60W / PF 0.74 / Eff 77% / 9–46V
  • 150mA / 1.35–6.90W / PF 0.83 / Eff 80% / 9–46V
  • 200mA / 1.80–9.20W / PF 0.89 / Eff 82% / 9–46V
  • 250mA / 2.25–11.50W / PF 0.92 / Eff 84% / 6–46V
  • 300mA / 2.70–13.80W / PF 0.94 / Eff 86% / 6–46V
  • 350mA / 3.15–16.10W / PF 0.96 / Eff 86% / 6–46V
  • 400mA / 4.00–18.40W / PF 0.97 / Eff 87% / 2.5–46V
  • 450mA / 4.50–20.70W / PF 0.97 / Eff 87% / 2.5–46V
  • 500mA / 5.00–23.00W / PF 0.98 / Eff 88% / 2.5–46V
  • 550mA / 5.50–22.50W / PF 0.97 / Eff 86% / 2.5–41V
  • 600mA / 6.00–22.80W / PF 0.97 / Eff 86% / 2.5–38V
  • 650mA / 6.50–22.70W / PF 0.98 / Eff 86% / 2.5–35V
  • 700mA / 7.00–22.40W / PF 0.98 / Eff 86% / 2.5–32V
• Max output power: 23W
• Output voltage range:
  • 100–200mA: 9–46VDC
  • 201–400mA: 6–46VDC
  • 401–500mA: 2.5–46VDC
  • 501–550mA: 2.5–41VDC
  • 551–600mA: 2.5–38VDC
  • 601–650mA: 2.5–35VDC
  • 651–700mA: 2.5–32VDC
• No-load voltage: ≤60VDC
• Output current accuracy:
  • 100–300mA: ±10%
  • 301–700mA: ±5%
• Ripple current: ±5%
• Startup delay time: ≤0.7s (DALI system)
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• THD: ≤15% @ full load
• Standby power: ≤0.5W (DIM to off)
• Inrush current: ≤40A / 15μs @ 230VAC full load
• Noise level: <20dB @ 30cm (background ≤16dB)

Environmental & Safety

• Operating temperature (Ta): –25°C to +50°C
• Storage temperature (Ts): –25°C to +85°C
• Max case temperature (Tc): 85°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery (not hot-swappable)
  • No-load: Auto recovery
• Insulation voltage: 3000VAC / 5mA / 60s (P–S)
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <0.7mA
• Surge protection: L–N / 2kV
• RoHS compliance: 2011/65/EU
• Lifetime: 50,000h @ Ta = 50°C
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Push-in terminal
• Installation type: Built-in & Independent
• Wire preparation:
  • PRI: 0.75–1.5mm² / 8mm strip
  • SEC: 0.5–1.5mm² / 8mm strip
  • DALI: 0.5–1.5mm² / 8mm strip
• Dimensions:
  • Independent: 138.7 × 31 × 21.5mm
  • Built-in: 118.3 × 31 × 21.5mm
• Max output wire length: 3m
• Breaker compatibility @230VAC (Inrush current: 40A / 15μs):
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Secondary switching not permitted
  • Hot plug-in not supported (residual voltage risk)
  • Restart required after LED load connection
  • LED module replacement requires 30s power-off delay
  • Wiring must be protected against shorts to earth

Certifications & Standards

• Certifications: CE
• Safety standards:
  • EN 300 330 V2.1.1:2017
  • EN 301 489-1 V2.2.3:2019
  • EN 301 489-3 V2.3.2:2023
  • EN 62479:2010
  • EN 50663:2017
• EMC standards:
  • EN IEC 55015:2019 / A11:2020
  • EN IEC 61000-3-2:2019/A1:2021
  • EN 61000-3-3:2013/A2:2021
  • EN IEC 61547:2023
• RED compliance: EN 300 330 / EN 301 489 / EN 62479
• Performance standard: EN62384
• DALI performance:
  • IEC 62386-101 / -102 / -207 / -251 / -252 / -253
