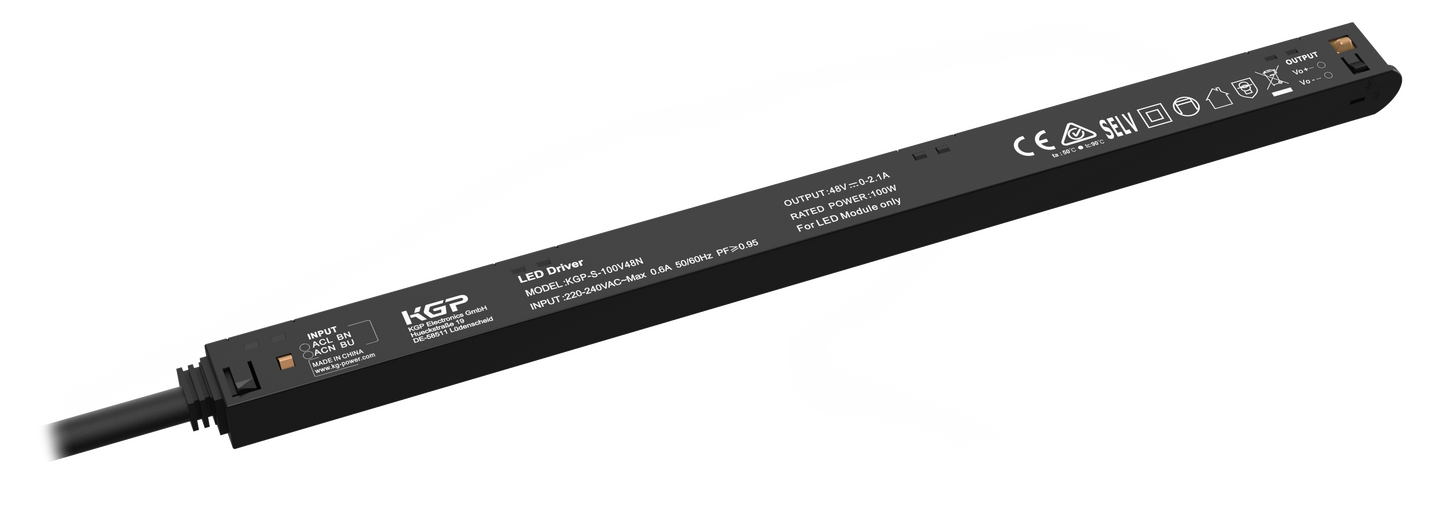

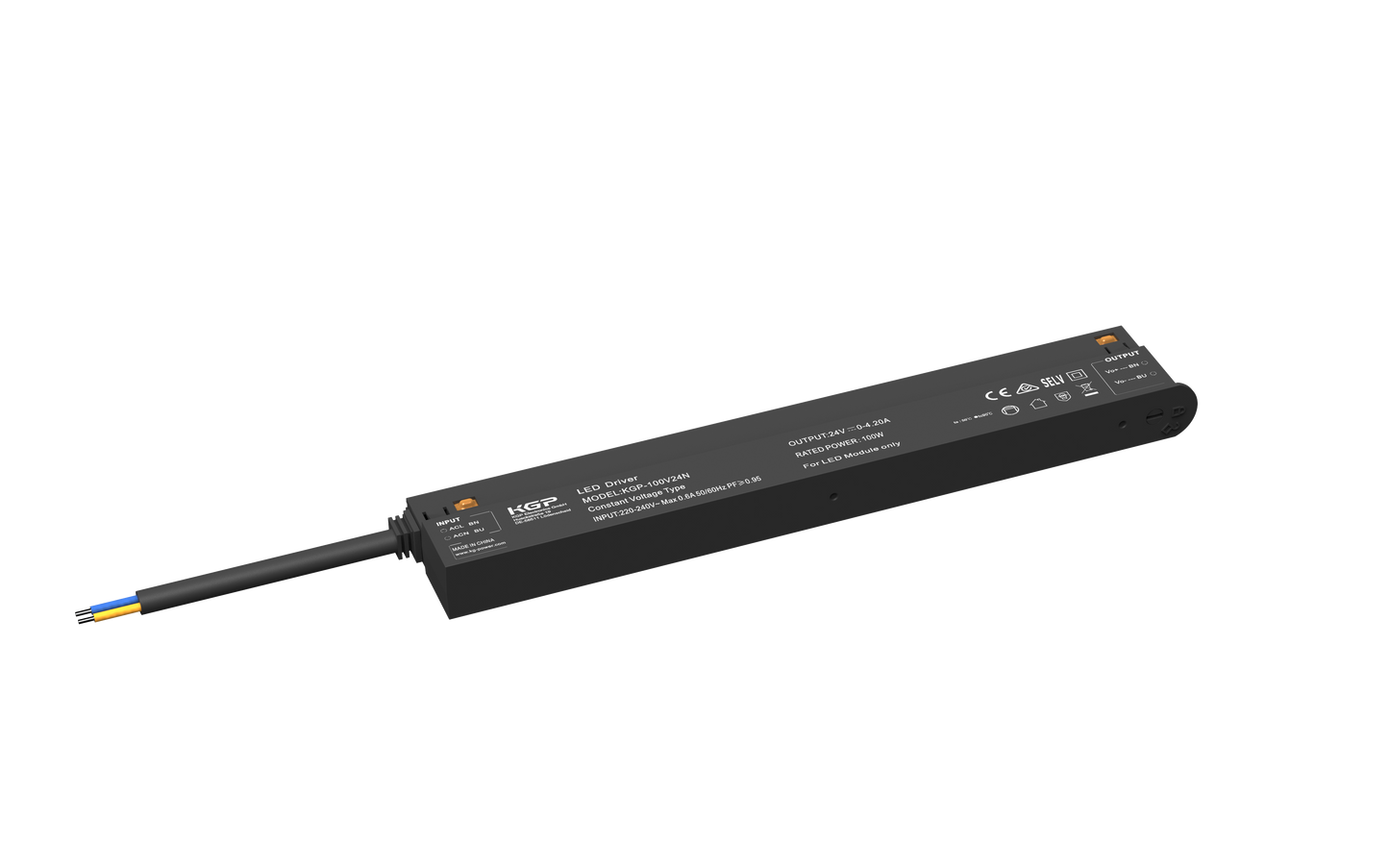

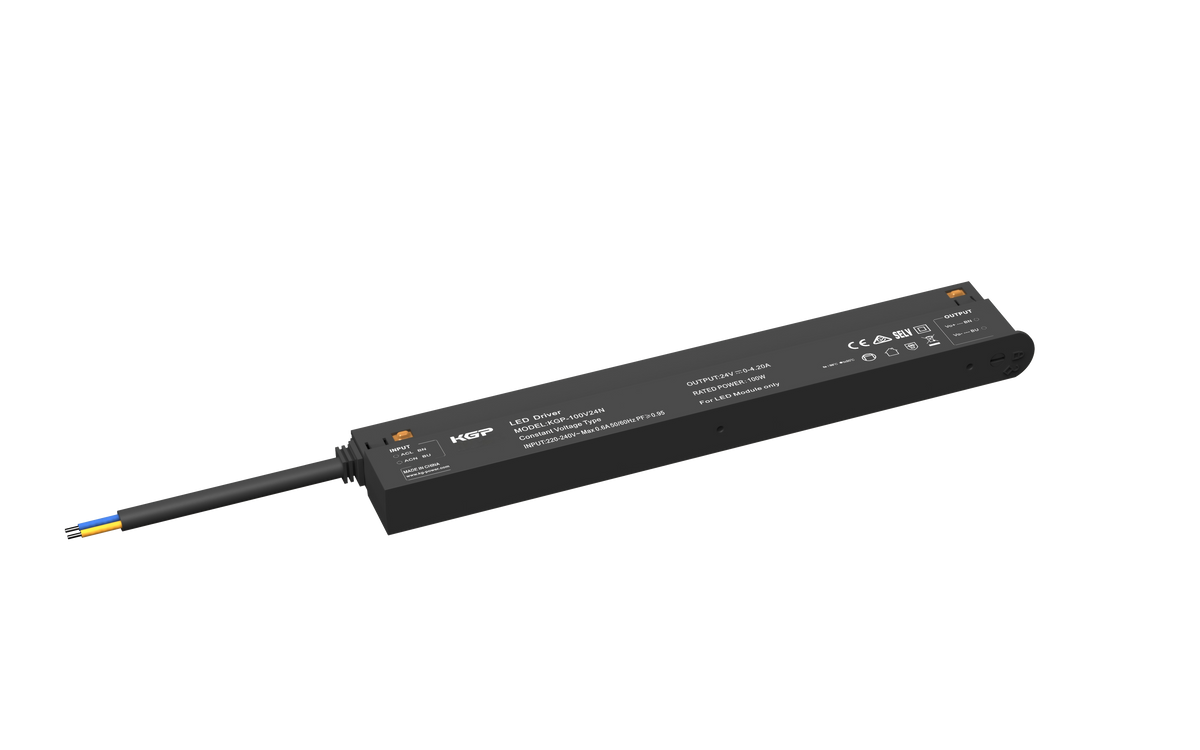

Standard Micro Intrack

Product Features

• Output type: Constant Voltage (SELV)
• Dimming interface: None (Non-dimmable)
• Output voltage:
  • KGP-100V24N: 24VDC ±3%
  • KGP-100V48N / 150V48N / 250V48N: 48VDC ±3%
• No-load voltage:
  • 24V models: ≤25VDC
  • 48V models: ≤49VDC
• Output current range:
  • KGP-100V24N: 0–4.2A
  • KGP-100V48N: 0–2.1A
  • KGP-150V48N: 0–3.12A
  • KGP-250V48N: 0–5.21A
• Output power range:
  • KGP-100VxxN: 0–100W
  • KGP-150V48N: 0–150W
  • KGP-250V48N: 0–250W
• Max input power:
  • 100W models: ≤115W
  • 150W models: ≤173W
  • 250W models: ≤288W
• Efficiency (typical @ 230VAC full load): ≥90%
• Power factor: ≥0.95
• THD: ≤10%
• Ripple voltage: <960mV pk-pk
• Line regulation: ±5%
• Load regulation: ±5%
• Startup delay time: ≤0.5s
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• Noise level: ≤24dB @ ≥15cm (background ≤18dB)

Environmental & Safety

• Operating temperature (Ta): –25°C to +40°C
• Storage temperature (Ts): –40°C to +85°C
• Max case temperature (Tc): 85°C
• Humidity range: 5%–85% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Over-current: 120%–200% Io, Auto recovery
  • Overload: Auto recovery
  • Over-voltage: 120%–150% Vo, Auto recovery
  • Over-temperature: 90°C < Tc < 110°C, Auto recovery
  • No-load: Auto recovery
• Insulation voltage: 3000VAC / 5mA / 60s (P–S)
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <250μA
• Surge protection: L–N / 2kV
• RoHS compliance: 2011/65/EU
• REACH compliance: EC No. 1907/2006
• Lifetime: 50,000h @ Ta/Tc
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Touch-sensitive (点触式)
• Installation type: Independent / Intrack
• Wire preparation:
  • PRI: 2 × 0.75mm²
• Dimensions: 267.5 × 43.6 × 22mm
• Max output wire length: 0.07m
• Breaker compatibility @230VAC (Inrush current: 80A / 220μs):
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Secondary switching not permitted (except CV type)
  • Hot plug-in not supported (residual voltage risk)
  • Restart required after LED load connection
  • LED module replacement requires 30s power-off delay
  • Wiring must be protected against shorts to earth
  • Use only with specified track systems
• Compatible track systems:
  • A.A.G STUCCHI – Multisystem 9500 & EVO
  • Powergear – PRO-N110 (48V low voltage track)

Certifications & Standards

• Certifications: CE / SAA / CCC
• Safety standards:
  • EN61347-1:2015/A1:2021
  • EN61347-2-13:2014/A1:2017
  • EN IEC 62384:2020
  • EN62493:2015/A1:2022
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
  • GB 17625.1-2022
  • GB/T 17743-2021
  • GB 19510.1-2009 / 2023
  • GB 19510.14-2009
  • GB 19510.213-2023
• EMC standards:
  • EN IEC 55015:2019 / A11:2020
  • EN IEC 61000-3-2:2019/A1:2021
  • EN 61000-3-3:2013/A2:2021
  • EN IEC 61547:2023
• Performance standard: EN62384
