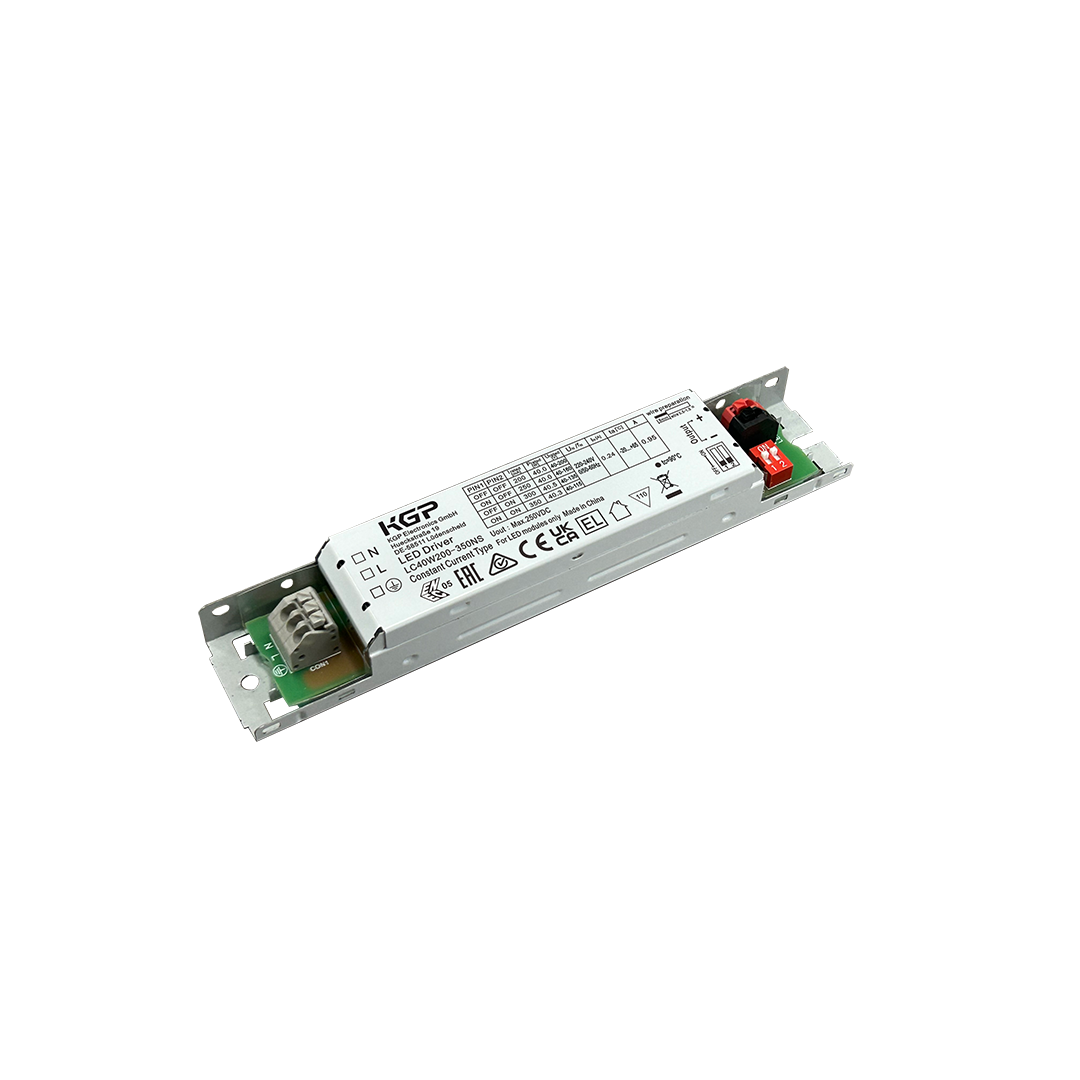

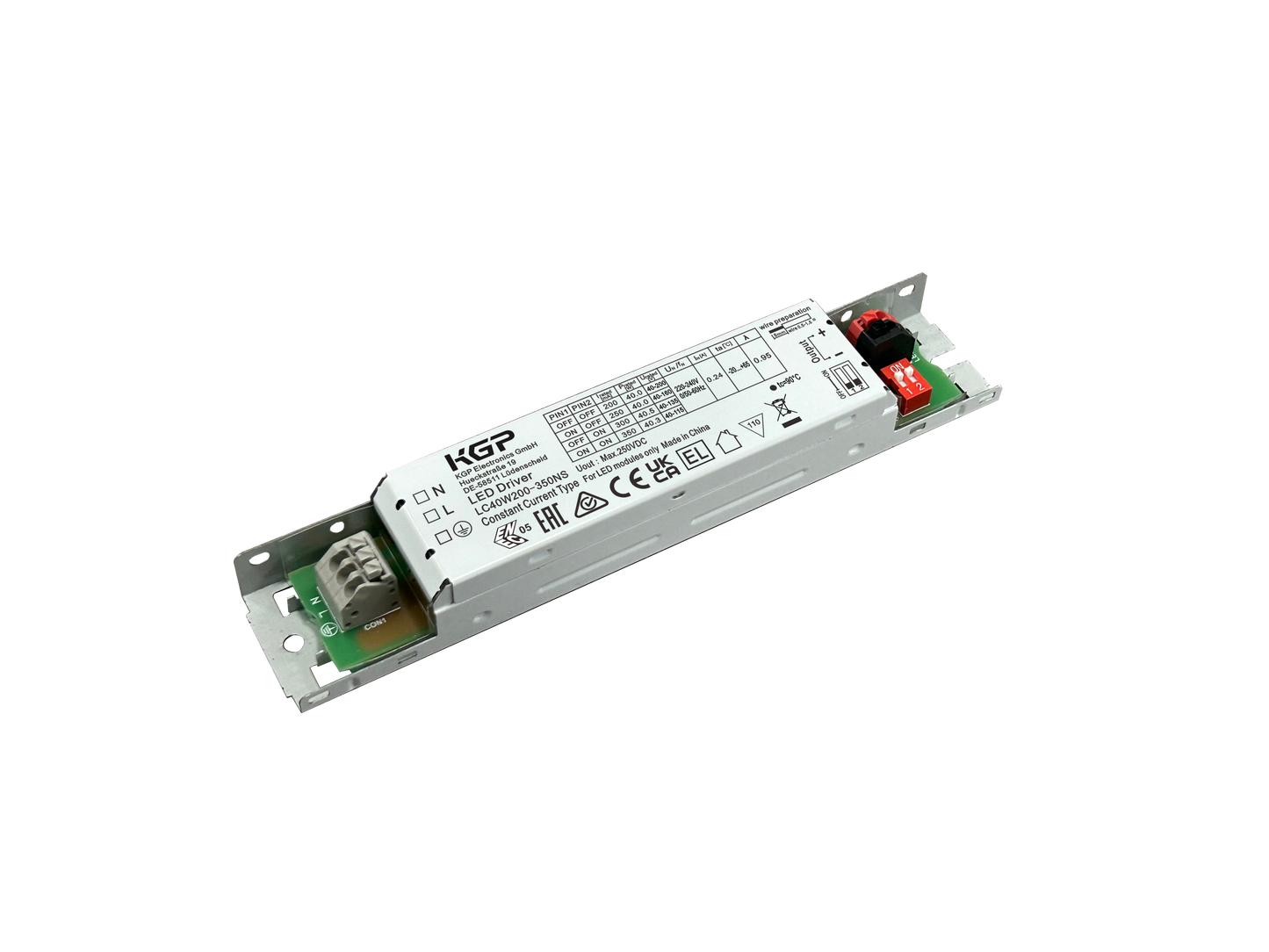

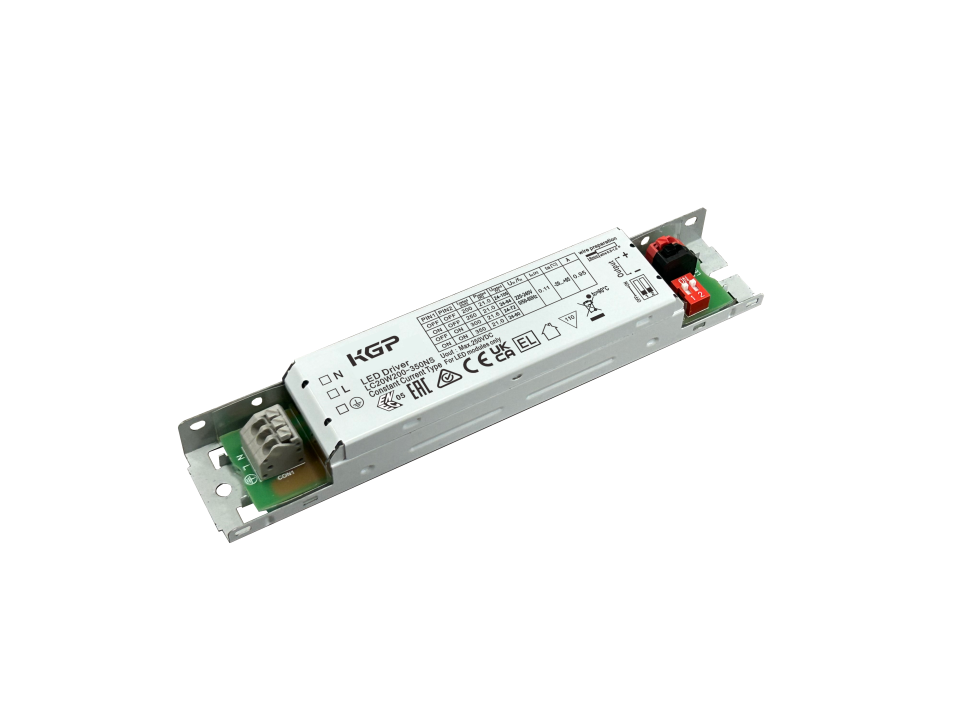

LC ON OFF NO SELV - LC40W200-350NS

Product Features

• Output type: Constant Current
• Isolation: Non-isolated
• Output current settings:
  • 200mA: 8.0–40.0W / PF ≥0.95 / Eff 93.5% / 40–200V / No-load ≤250V
  • 250mA: 10.0–40.0W / PF ≥0.95 / Eff 93.0% / 40–160V / No-load ≤250V
  • 300mA: 12.0–40.5W / PF ≥0.95 / Eff 92.5% / 40–135V / No-load ≤250V
  • 350mA: 14.0–40.3W / PF ≥0.95 / Eff 92.0% / 40–115V / No-load ≤250V
• Max output power: 40.5W
• Output current accuracy: ±5%
• Ripple current: ±5%
• Line regulation: ±5%
• Load regulation: ±5%
• Startup delay time: ≤0.5s
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• No-load power consumption: ≤0.5W
• Inrush current: ≤40A / 150μs @ 230VAC
• Noise level: ≤24dB @ ≥15cm (background ≤18dB)

Environmental & Safety

• Operating temperature (Ta): –20°C to +65°C
• Storage temperature (Ts): –25°C to +85°C
• Max case temperature (Tc): 90°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • Over-temperature: Auto recovery
• Insulation voltage:
  • I/P–PE: 1.75kVAC / 1min
  • O/P–PE: 1.75kVAC / 1min
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <0.7mA
• Surge protection:
  • L–N: 1kV
  • L/N–PE: 2kV
• RoHS compliance: 2011/65/EU
• REACH compliance: EC No. 1907/2006
• Lifetime: 50,000h @ Tc = 90°C
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class I
• Connection method: Push-in terminal
• Installation type: Built-in
• Wire preparation:
  • PRI: 0.5–1.5mm² / 8mm strip
  • SEC: 0.5–1.5mm² / 8mm strip
• Dimensions: 165 × 30 × 21mm
• Breaker compatibility @230VAC (Inrush current: 40A / 150μs):
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Max output wire length: 3m
  • Secondary switching not permitted
  • Hot plug-in not supported (residual voltage risk)
  • Restart required after LED load connection
  • LED module replacement requires 30s power-off delay
  • Wiring must be protected against shorts to earth
  • Do not install upside down

Certifications & Standards

• Certifications: CE / ENEC / UKCA / EL / EAC / SAA
• Safety standards:
  • EN61347-1:2015/A1:2021
  • EN61347-2-13:2014/A1:2017
  • EN62493:2015
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
  • BS EN 61347-1:2015/A1:2021
  • BS EN 61347-2-13:2014/A1:2017
• EMC standards:
  • EN IEC 55015:2019 / A11:2020
  • EN IEC 61000-3-2:2019 / A1:2021
  • EN 61000-3-3:2013 / A2:2021
  • EN IEC 61547:2023
• Performance standard: EN IEC 62384:2020
