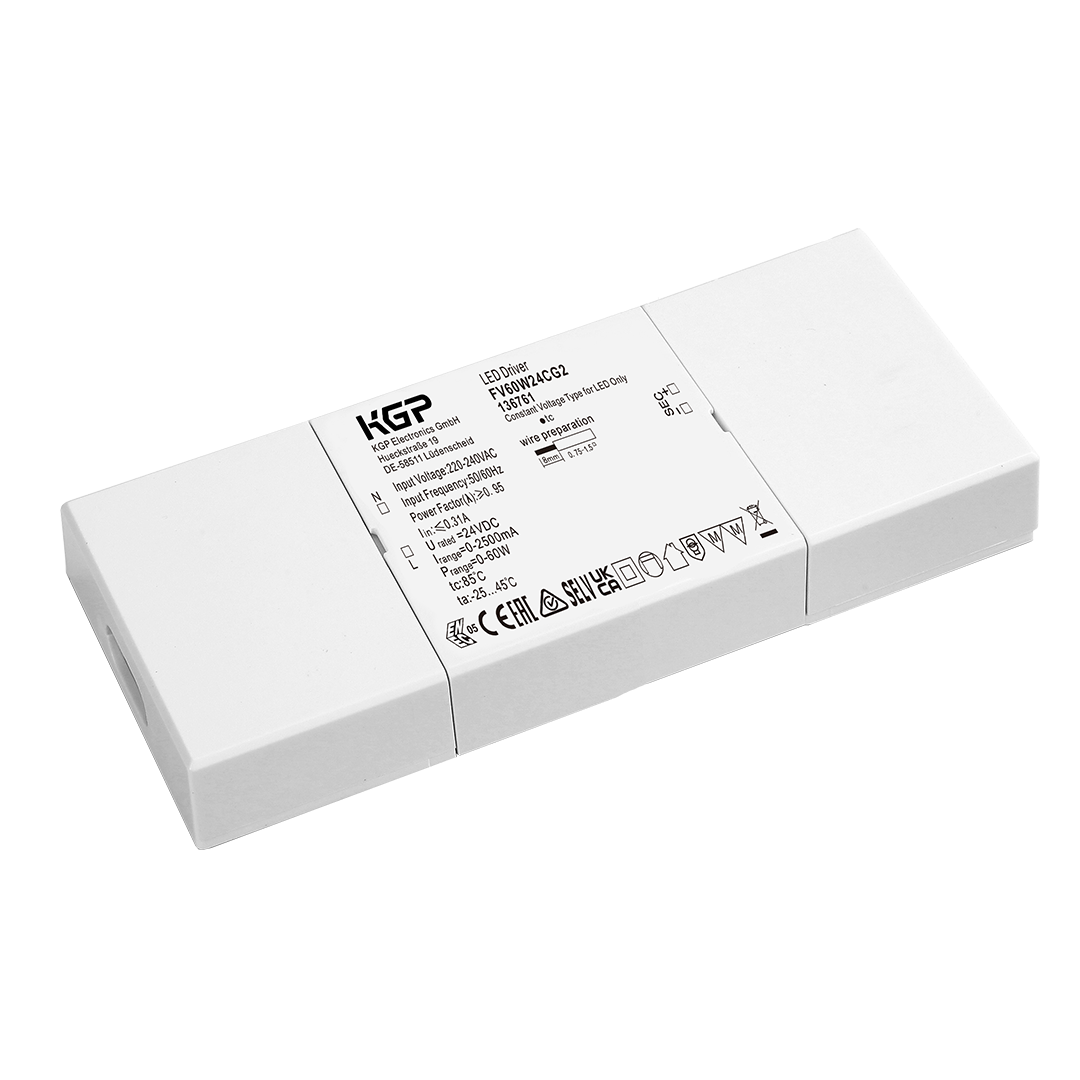

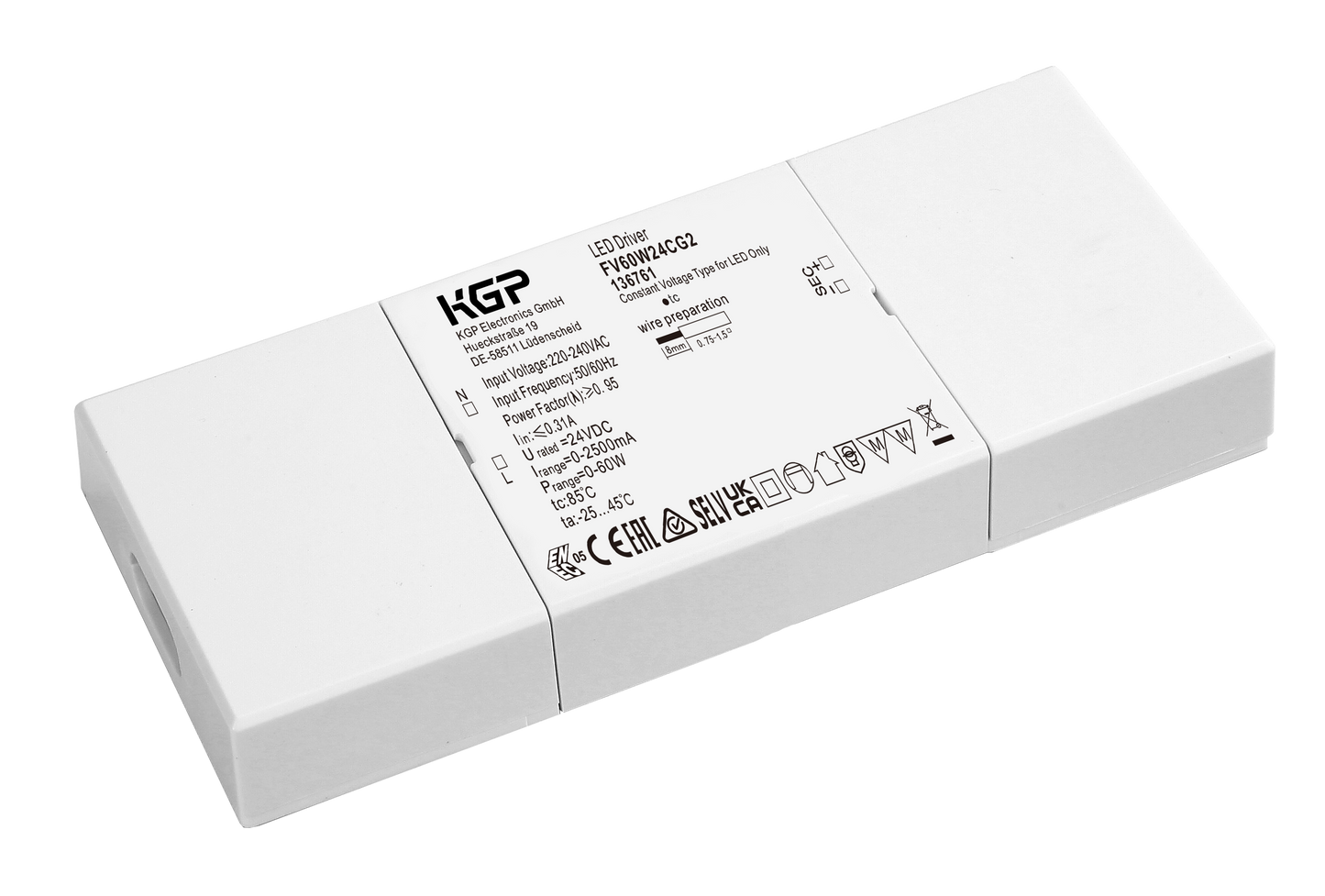

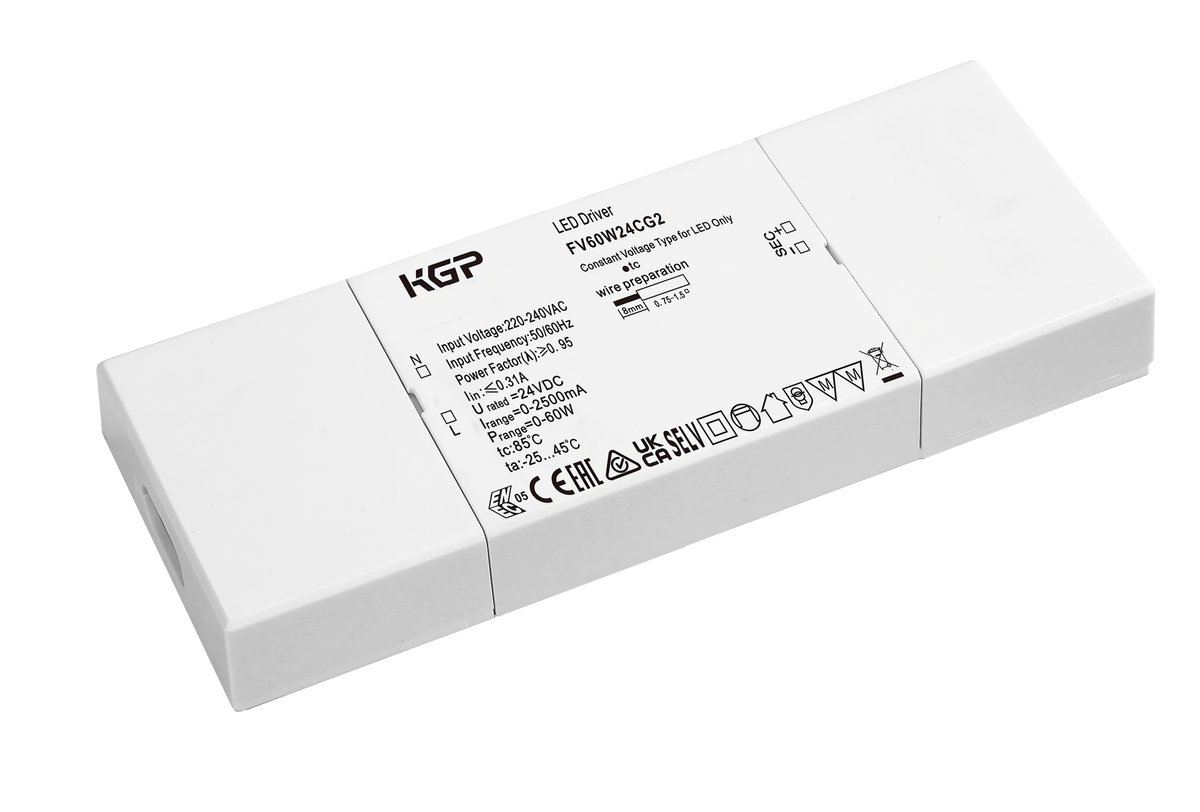

FV ON OFF series - FV60W24CG2 / FV60W48CG

Product Features

• Output type: Constant Voltage (SELV)
• Dimming interface: None (Non-dimmable)
• Output voltage:
  • FV60W24CG2: 24VDC ±5%
  • FV60W48CG: 48VDC ±5%
• No-load voltage:
  • FV60W24CG2: 25VDC
  • FV60W48CG: 49VDC
• Output current range:
  • FV60W24CG2: 0–2500mA
  • FV60W48CG: 0–1250mA
• Output power range: 0–60W
• Recommended minimum load: ≥10%
• Max output power: 60W
• Efficiency (typical @ 230VAC full load):
  • FV60W24CG2: 90%
  • FV60W48CG: 91%
• Power factor: ≥0.95
• THD: ≤15%
• Ripple voltage: ≤3%
• Startup delay time: ≤0.5s
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• No-load power consumption: ≤0.5W
• Noise level: ≤24dB @ ≥15cm (background ≤18dB)

Environmental & Safety

• Operating temperature (Ta): –25°C to +45°C
• Storage temperature (Ts): –40°C to +85°C
• Max case temperature (Tc): 85°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• Insulation voltage: I/P–O/P: 3000VAC / 5mA / 1min
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <250μA
• Surge protection: L–N / 2kV
• RoHS compliance: 2011/65/EU
• Lifetime: 50,000h @ Ta/Tc
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Terminal block
• Installation type: Independent
• Wire preparation:
  • PRI: 0.75–1.5mm² / 8mm strip
  • SEC: 0.5–1.5mm² / 8mm strip
• Dimensions: 170 × 57 × 18mm
• Breaker compatibility @230VAC (Inrush current: 33.8A / 248μs):
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Max output wire length: 3m
  • Secondary switching not permitted (except CV type)
  • Wiring must be protected against shorts to earth
  • Incorrect wiring may damage LED modules

Certifications & Standards

• Certifications: ENEC / CE / UKCA / SAA
• Safety standards:
  • EN61347-1:2015
  • EN61347-2-13:2014/A1:2017
  • EN62384:2006/A1:2009
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC standards:
  • EN IEC 55015:2019 / A11:2019
  • EN IEC 61000-3-2:2019
  • EN 61000-3-3:2013 / A1:2019
  • EN61547:2009
• Performance standard: EN62384
