FV ON OFF series

Product Features

• Output Type: Constant Voltage (SELV insulated)
• Voltage Options:
  • 24VDC ±5%
  • 48VDC ±5%
• Power Ratings by Model:
  • FV12W24CG2 / FV12W48CG: 0–12W
  • FV24W24CG2 / FV24W48CG: 0–24W
  • FV36W24CG2 / FV36W48CG: 0–36W
  • FV60W24CG2 / FV60W48CG: 0–60W
  • FV90W24CG2 / FV90W48CG: 0–90W
  • FV120W24CG2 / FV120W48CG: 0–120W
• Output Current Range:
  • 24V models: up to 5000mA
  • 48V models: up to 2500mA
• Efficiency:
  • FV12W–FV36W: ≥88%
  • FV60W–FV120W: ≥91%
• Power Factor: ≥0.95 @ 230VAC full load
• THD: ≤15% @ 230VAC full load
• Voltage Ripple: ≤3%
• Start Delay Time: ≤0.5s @ 230VAC full load
• No-load Power Consumption: ≤0.5W
• Flicker Metrics:
  • PstLM ≤1
  • SVM ≤0.4
• Protection Features:
  • Short Circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• Surge Protection: L–N: 2kV
• Recommended Minimum Load: ≥10% of rated power
• Lifetime: ≥50,000 hours @ Ta/Tc
• Warranty: 5 years (Failure rate <10,000ppm)

Environmental & Safety

• Operating Temperature (Ta): –25°C to +45°C
• Storage Temperature (Ts): –40°C to +85°C
• Max Case Temperature (Tc):
  • FV12W–FV90W: 85°C
  • FV120W: 90°C
• Humidity Range: 10%–90% RH (non-condensing)
• Atmospheric Pressure: 86–108kPa
• Insulation Voltage: I/P to O/P: 3kVac / 5mA / 1min
• Insulation Resistance: >100MΩ @ 500VDC
• Leakage Current: <250μA

Build & Installation

• Installation Type: Independent
• IP Rating: IP20
• Insulation Class: Class II
• Connection Method: Terminal block
• Wire Preparation:
  • PRI: 0.75–1.5mm²
  • SEC: 0.75–1.5mm²
• Maximum Output Wire Length: 3m
• Wiring Guidelines:
  • Keep mains leads separate from LED and other signal wires (5–10cm spacing)
  • Secondary switching not permitted (except for constant voltage)
  • Wiring must be protected against short circuits to earth
  • Keep connections short to ensure good EMI behavior
• Dimensions by Model:

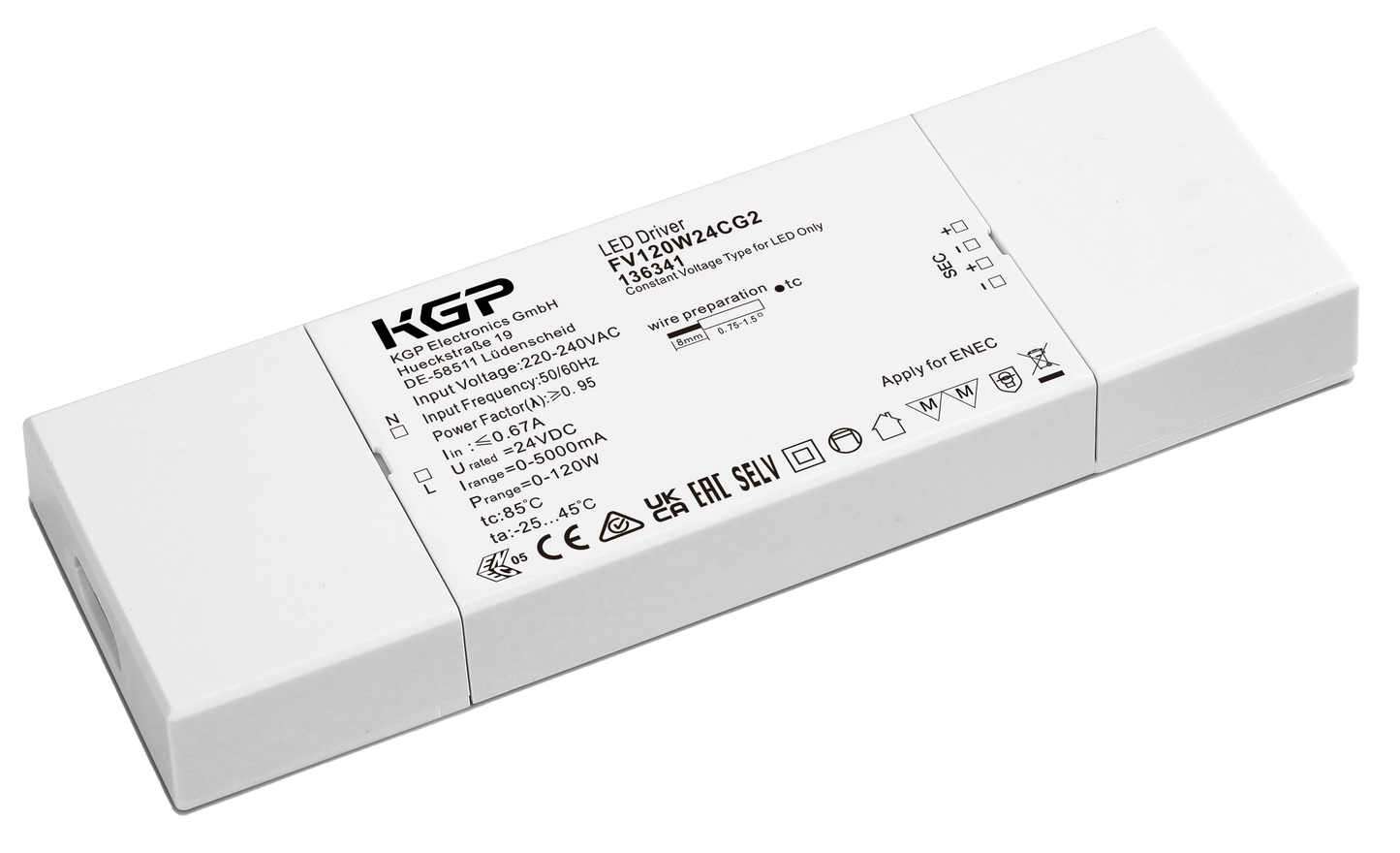

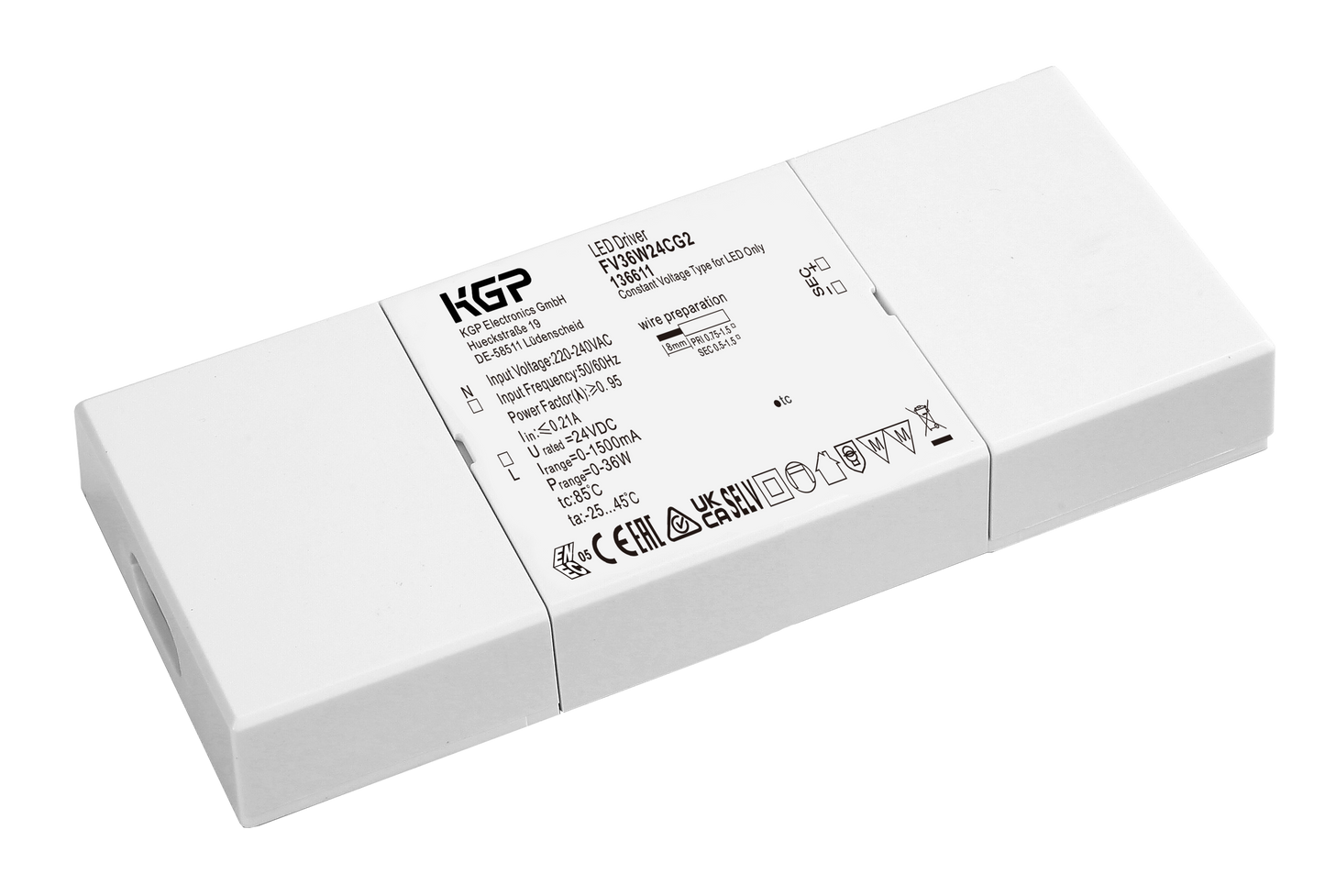

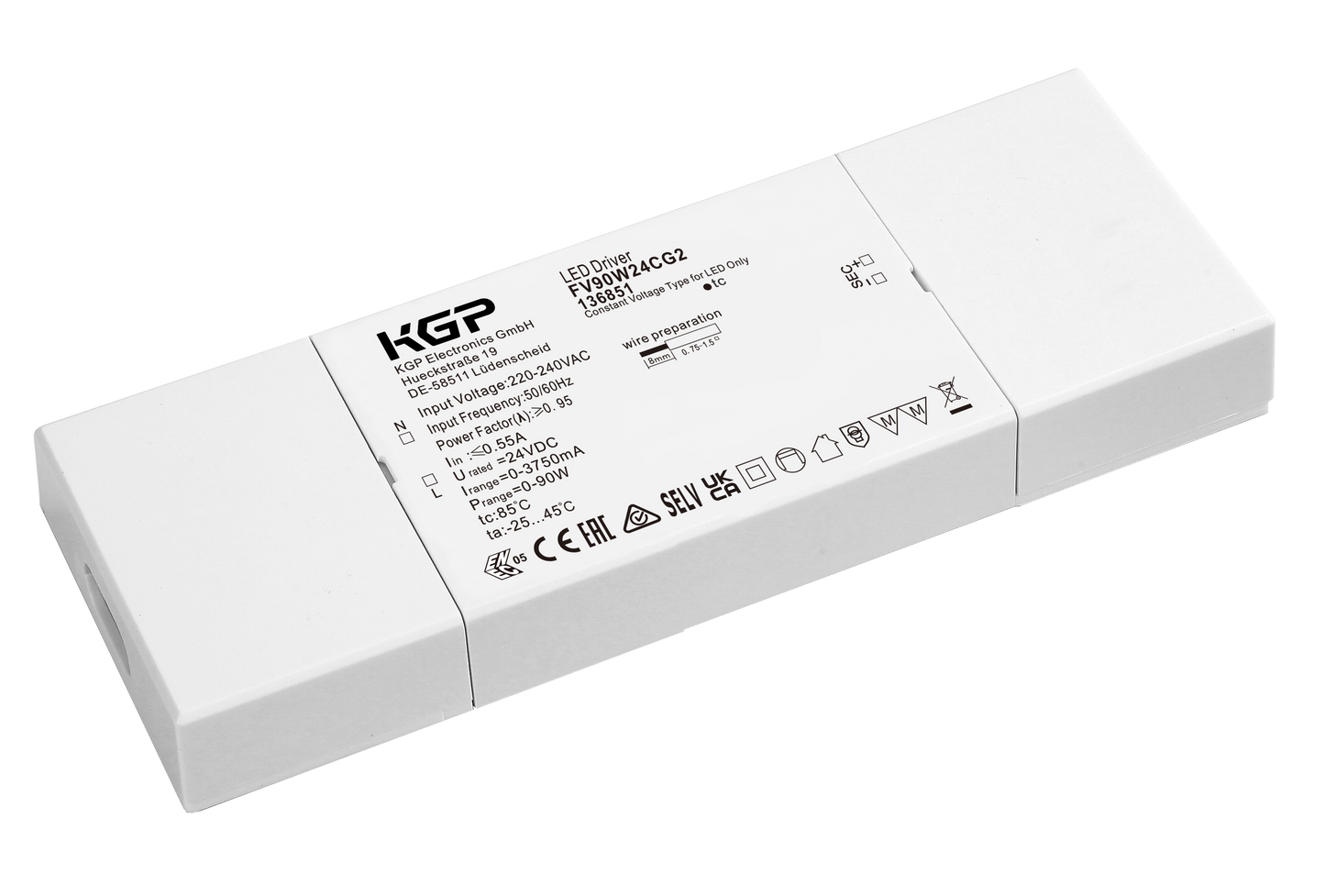

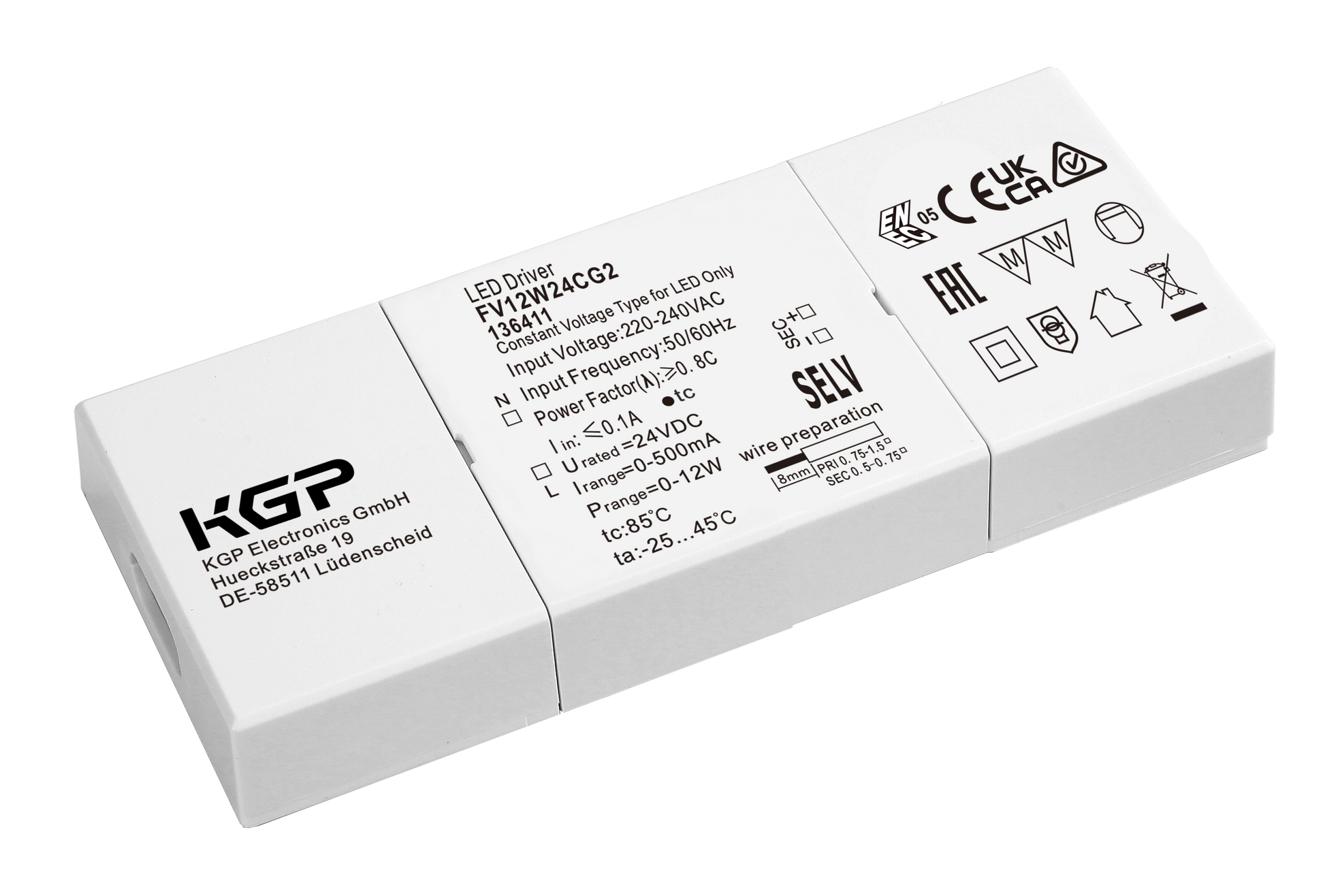

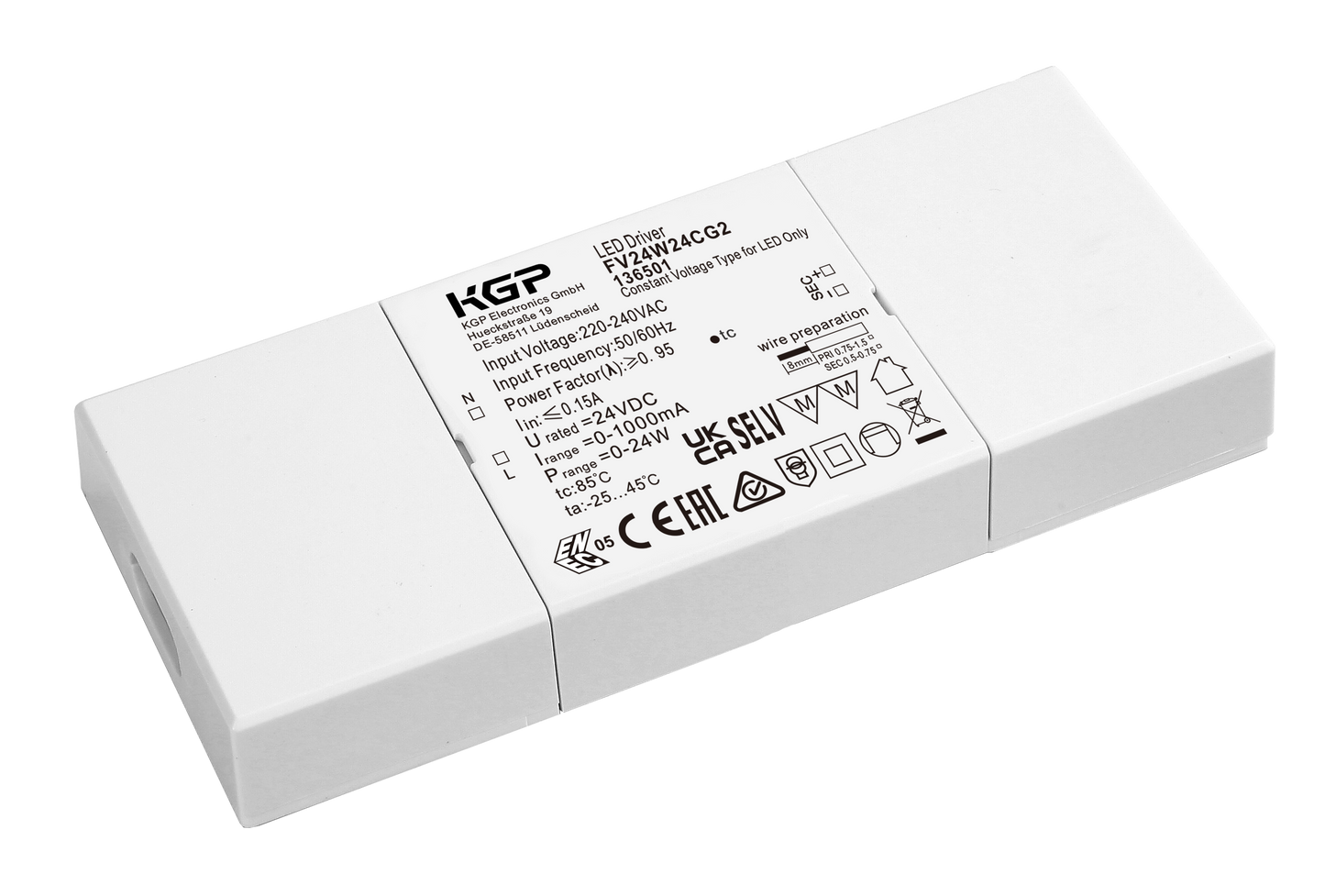

  • FV12W: 110 × 35 × 22mm
  • FV24W: 123 × 35 × 22mm
  • FV36W: 140 × 35 × 22mm
  • FV60W: 160 × 45 × 22mm
  • FV90W: 177 × 65 × 22mm
  • FV120W: 190 × 65 × 22mm

Certifications & Standards

• Certifications: ENEC, CE, EAC, SAA, UKCA
• Safety Standards:
  • EN 61347-1:2015
  • EN 61347-2-13:2014/A1:2017
  • EN 62384:2006/A1:2009
  • AS 61347.2.13:2018
  • AS/NZS 61347.1:2016 Inc A1
• EMC Standards:
  • EN IEC 55015:2019 / A11:2019
  • EN IEC 61000-3-2:2019
  • EN 61000-3-3:2013/A1:2019
  • EN 61547:2009
• Performance Standard: EN 62384
• RoHS Compliance: 2011/65/EU



DOWNLOAD FV12W24CG2 FV12W48CG PRODUCT SHEET

DOWNLAOD FV24W24CG2 FV24W48CG PRODUCT SHEET

DOWNLAOD FV36W24CG2 FV36W48CG PRODUCT SHEET

DOWNLAOD FV60W24CG2 FV60W48CG PRODUCT SHEET

DOWNLAOD FV90W24CG2 FV90W48CG PRODUCT SHEET

DOWNLAOD FV120W24CG2 FV120W48CG PRODUCT SHEET

DOWNLOAD FVXXW24CG2 SAA CERTIFICATE

DOWNLOAD FVXXW48CG SAA CERTIFICATE
