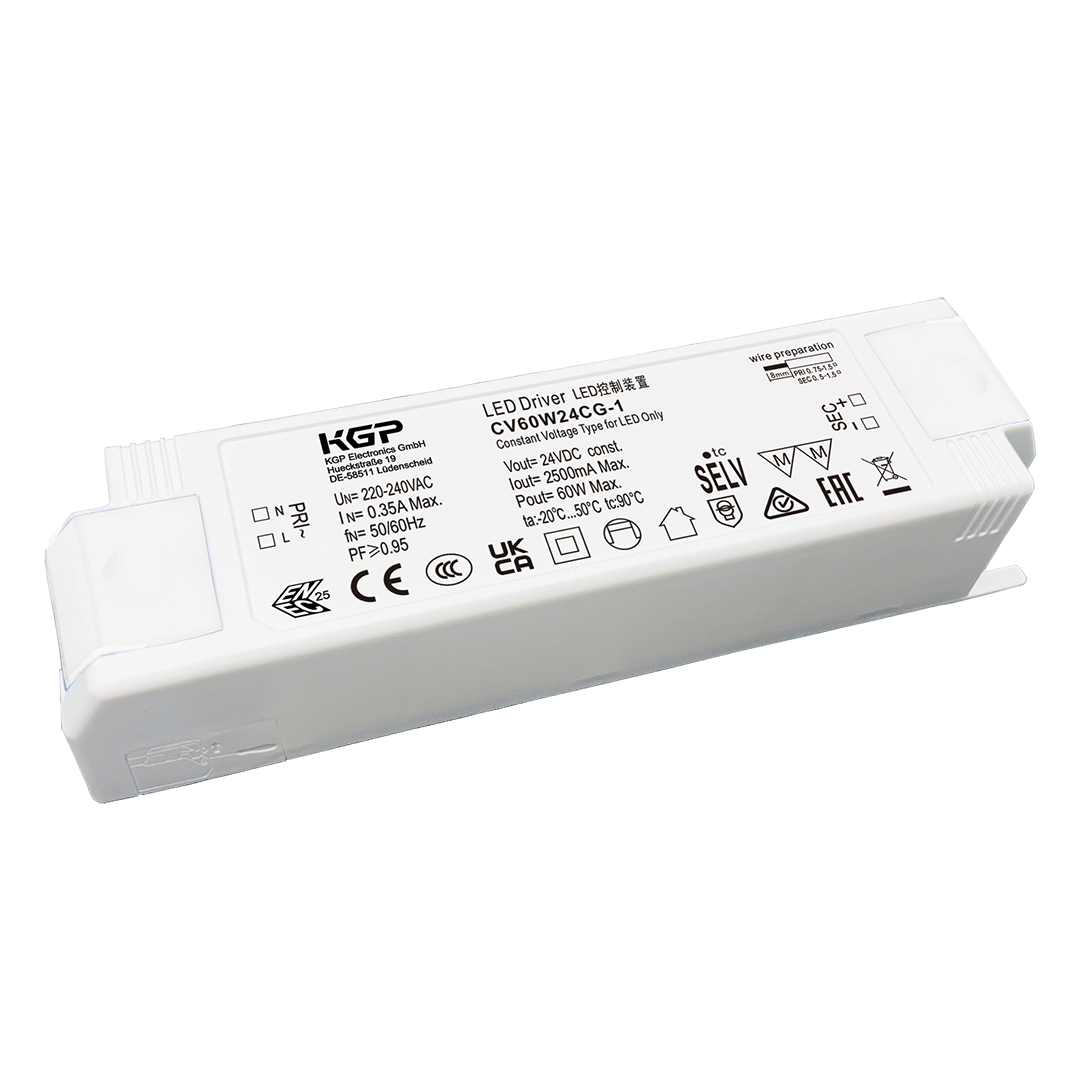

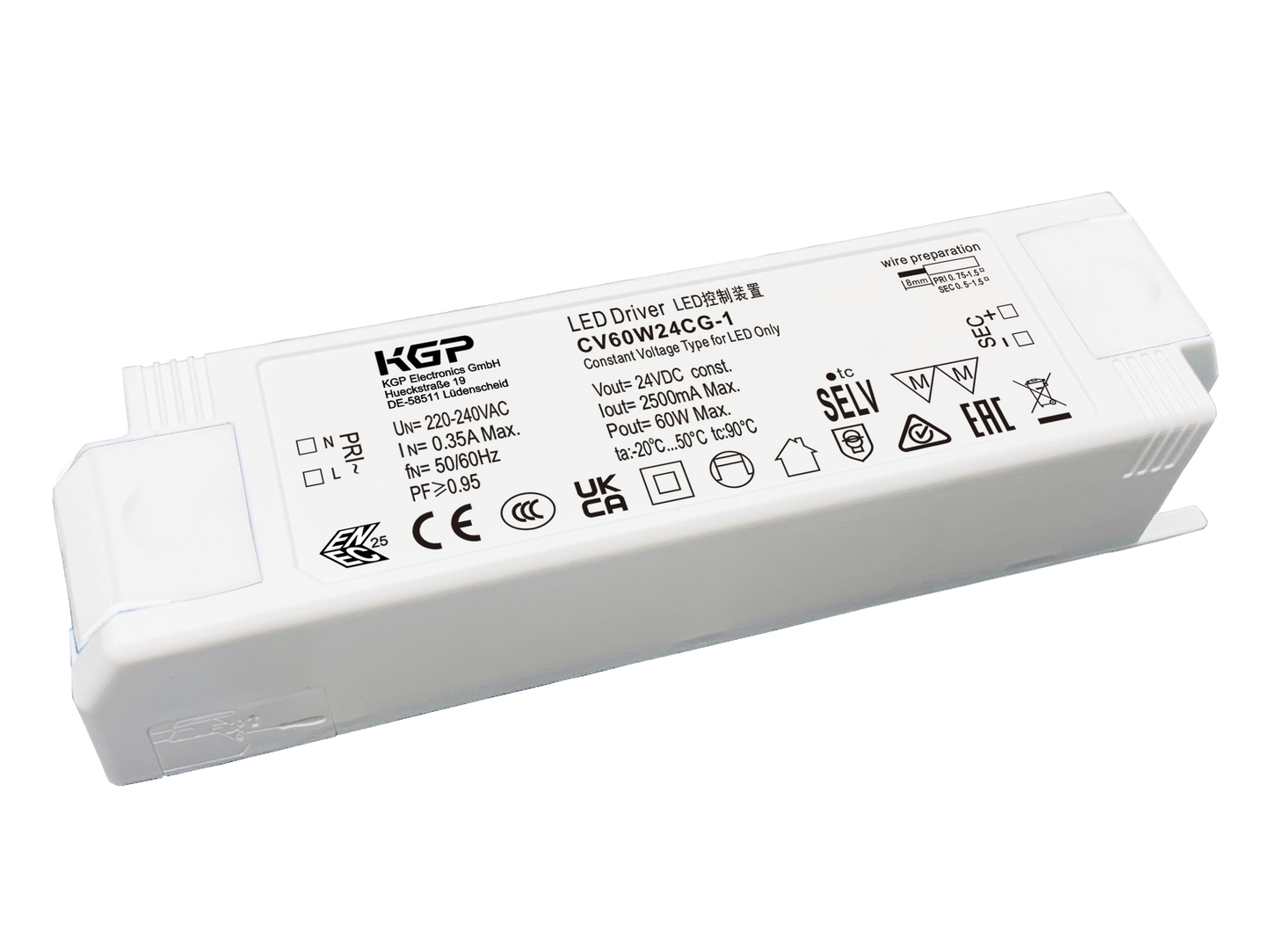

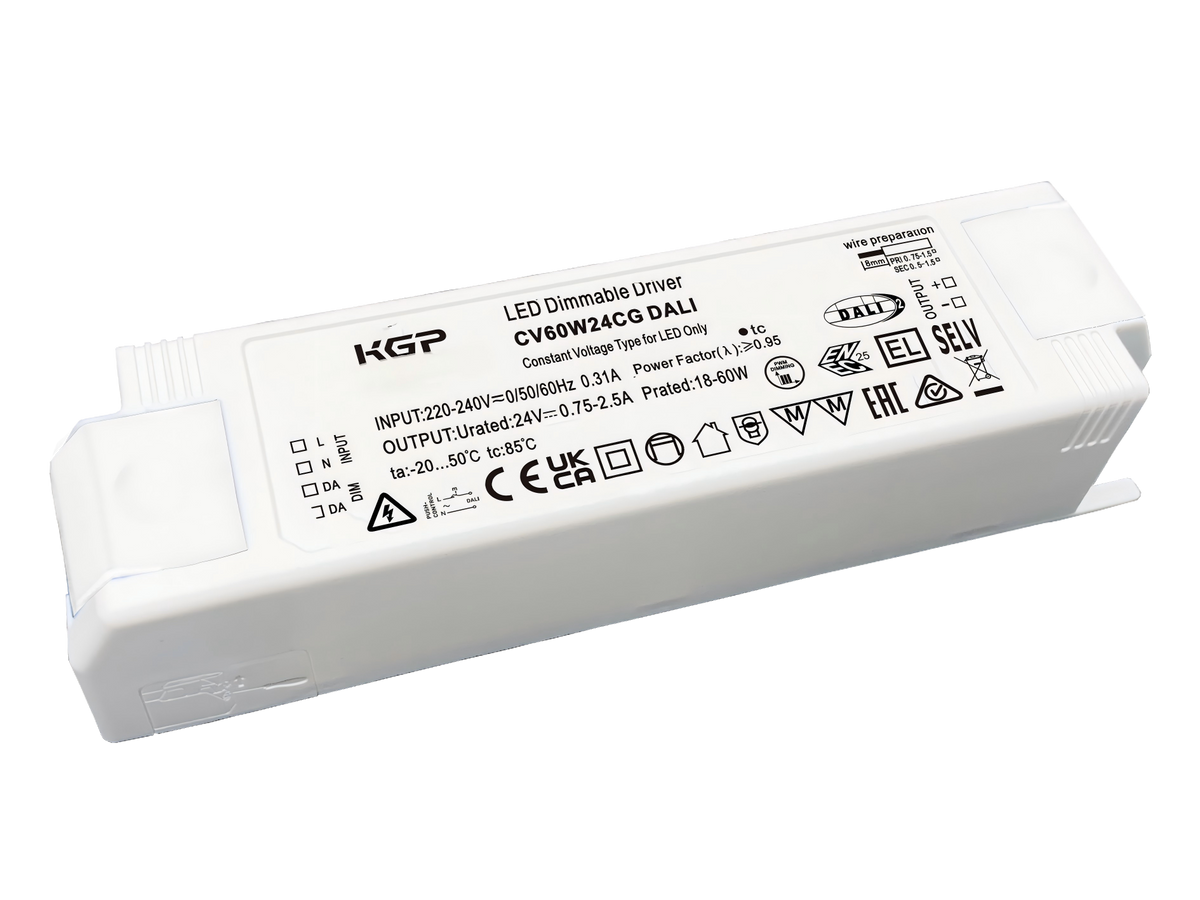

CV ON OFF Series - CV60W24CG-1

Product Features

• Output type: Constant Voltage (SELV)
• Output voltage: 24VDC ±5%
• No-load voltage: 23–25VDC
• Output current range: 0.125–2.5A
• Output power range: 3–60W
• Max output power: 60W
• Efficiency (typical @ 230VAC full load): 88%
• Power factor: ≥0.95
• THD: ≤10%
• Ripple current: ±5%
• Output voltage ripple: ±2% (<120Hz)
• Line regulation: ±1%
• Load regulation: ±2%
• Overshoot: <105%Vo
• Output current accuracy: ±5%
• Startup delay time: ≤0.5s
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• No-load power consumption: ≤0.5W
• Noise level: ≤24dB @ ≥15cm (background ≤18dB)

Environmental & Safety

• Operating temperature (Ta): –20°C to +50°C
• Storage temperature (Ts): –40°C to +85°C
• Max case temperature (Tc): 90°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• Insulation voltage:
  • I/P–O/P: 3000VAC / 1min
  • I/P–PE: 1500VAC / 1min
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <250μA
• Surge protection:
  • L–N: 2kV
  • L–PE: 2kV
• RoHS compliance: 2011/65/EU
• REACH compliance: EC No. 1907/2006
• Lifetime: 50,000h @ Ta/Tc
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Push-in terminal
• Installation type: Independent
• Wire preparation:
  • PRI: 0.75–1.5mm² / 8mm strip
  • SEC: 0.5–1.5mm² / 8mm strip
• Dimensions: 151.5 × 40.2 × 31mm
• Breaker compatibility @230VAC (Inrush current: 45A / 300μs):
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Max output wire length: 3m
  • Secondary switching not permitted (except CV type)
  • Wiring must be protected against short circuits to earth
  • Incorrect wiring may damage LED modules

Certifications & Standards

• Certifications: CE / ENEC / SAA / UKCA
• Safety standards:
  • EN61347-1:2015/A1:2021
  • EN61347-2-13:2014/A1:2017
  • EN62493:2015
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC standards:
  • EN IEC 55015:2019 / A11:2020
  • EN IEC 61000-3-2:2019
  • EN 61000-3-3:2013 / A1:2019
  • EN61547:2009
• Performance standard: EN62384
