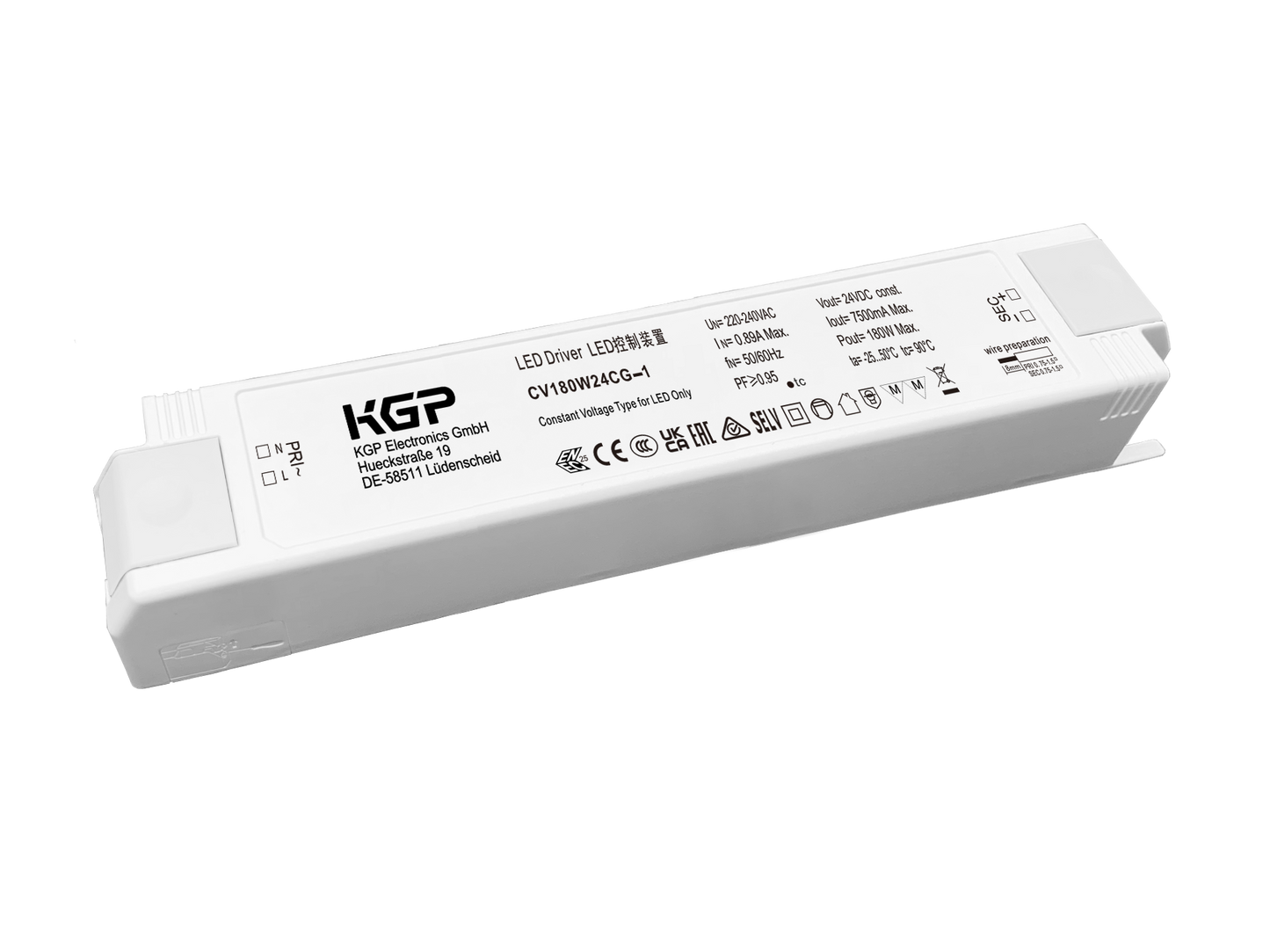

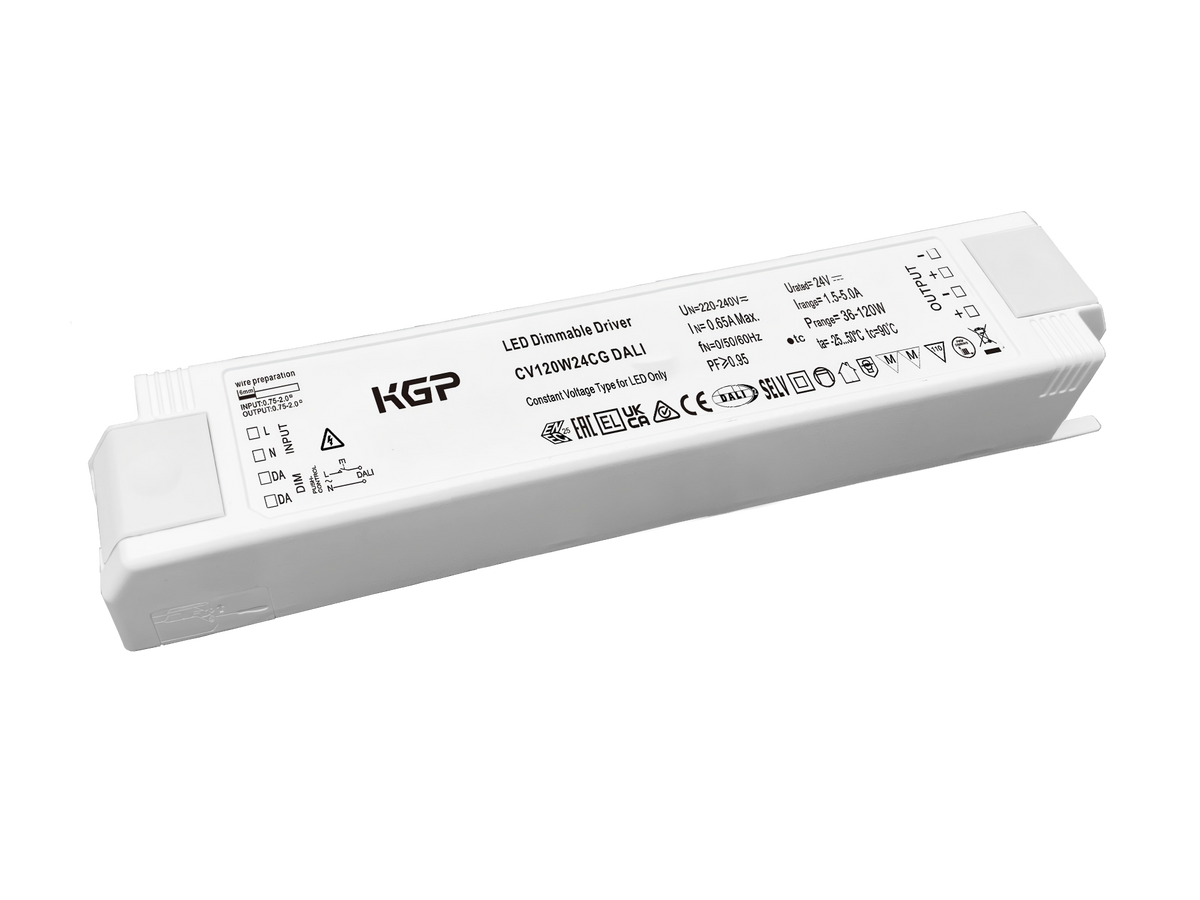

CV ON OFF Series - CV(120-180)W24CG-1

Product Features

• Output type: Constant Voltage (SELV)
• Dimming interface: None (Non-dimmable)
• Output voltage: 23.3–24.7VDC
• No-load voltage: 24–25VDC
• Output current range:
  • CV120W: 0.25–5.0A
  • CV180W: 0.25–7.5A
• Output power range:
  • CV120W: 6–120W
  • CV180W: 6–180W
• Max output power:
  • CV120W: ≤137W
  • CV180W: ≤196W
• Efficiency (typical @ 230VAC full load): 93%
• Power factor: ≥0.95
• THD: ≤10%
• Ripple voltage: ±5%
• Line regulation: ±5%
• Load regulation: ±5%
• Startup delay time: ≤0.5s
• Hold-up time:
  • CV120W: 32ms
  • CV180W: 46ms
• Turn-off time:
  • CV120W: 254ms
  • CV180W: 296ms
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• No-load power consumption: ≤0.5W
• Noise level: <25dB @ 10cm (background ≤20dB)

Environmental & Safety

• Operating temperature (Ta): –25°C to +50°C
• Storage temperature (Ts): –40°C to +85°C
• Max case temperature (Tc):
  • CV120W: 85°C
  • CV180W: 90°C
• Humidity range: 5%–85% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Over-current: Auto recovery
  • Over-voltage: Auto recovery
• Insulation voltage: I/P–O/P: 3000VAC / 5mA / 1min
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <250μA
• Surge protection: L–N: 2kV
• RoHS compliance: 2011/65/EU
• REACH compliance: EC No. 1907/2006
• Lifetime: ≥50,000h @ 230VAC full load
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II (meets Class I lamp requirements)
• Connection method: Push-in terminal
• Installation type: Independent
• Wire preparation:
  • PRI: 0.75–1.5mm² / 8mm strip
  • SEC: 0.75–1.5mm² / 8mm strip
  • SEC cable length: Max 3m
• Cable diameter range: 1.5–3mm
• Dimensions: 253 × 42.5 × 31mm
• Breaker compatibility @230VAC:
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Max output wire length: 3m
  • Secondary switching not permitted (except CV type)
  • Wiring must be protected against short circuits to earth
  • Incorrect wiring may damage LED modules

Certifications & Standards

• Certifications: CE / ENEC / SAA / UKCA
• Safety standards:
  • EN61347-1:2015
  • EN61347-2-13:2014/A1:2017
  • EN62384:2006/A1:2009
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC standards:
  • EN IEC 55015:2019 / A11:2019
  • EN IEC 61000-3-2:2019
  • EN 61000-3-3:2013 / A1:2019
  • EN61547:2009
• Performance standard: EN62384
