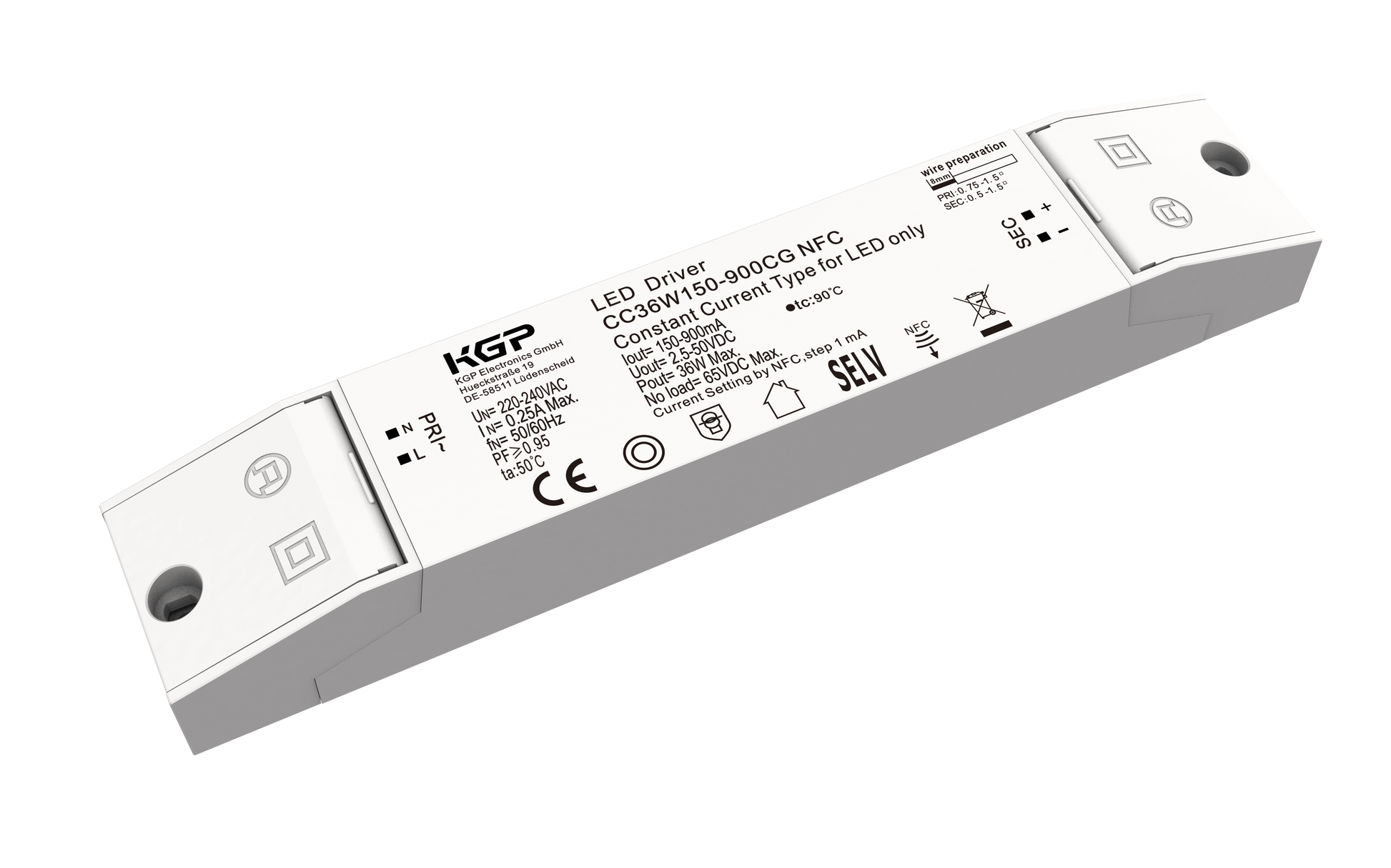

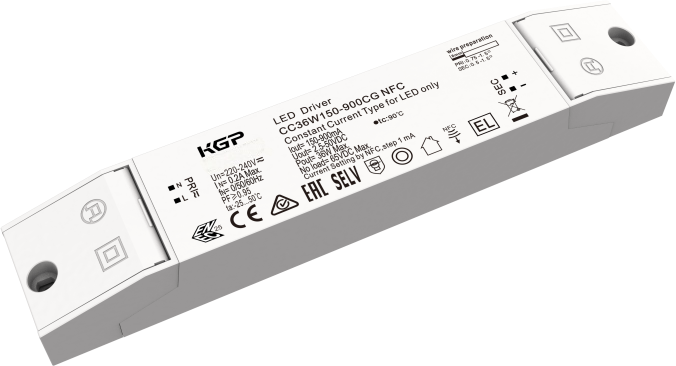

Compact ON OFF NFC - CC36W150-900CG NFC

Product Features

• Output type: Constant Current (SELV)
• Output current range: 150–900mA (programmable via NFC in 1mA steps)
• Output voltage range:
  • 2.5–50VDC @ ≤700mA
  • 2.5–48VDC @ 701–750mA
  • 2.5–45VDC @ 751–800mA
  • 2.5–42VDC @ 801–850mA
  • 2.5–40VDC @ 851–900mA
• No-load voltage: ≤65VDC
• Max output power: 36W
• Output current accuracy:
  • ±10% @ 150–300mA
  • ±5% @ 301–900mA
• Ripple current: ±5%
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• Startup delay time: ≤0.5s
• Efficiency (typical @ 230VAC full load):
  • 150mA: 79%
  • 300mA: 84%
  • 500mA: 86%
  • 750mA: 88%
  • 900mA: 88%
• Power factor (typical @ 230VAC full load):
  • 150mA: 0.76
  • 300mA: 0.89
  • 500mA: 0.95
  • 750mA: 0.97
  • 900mA: 0.97
• THD: ≤10% @ 230VAC full load
• Noise level: <20dB @ 30cm (background ≤16dB)

Environmental & Safety

• Operating temperature (Ta): –25°C to +50°C
• Storage temperature (Ts): –25°C to +85°C
• Max case temperature (Tc): 90°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery (not hot-swappable)
  • No-load: Auto recovery
• Insulation voltage: 3000VAC / 60s / 5mA
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <0.7mA
• Surge protection: L–N / 2kV
• RoHS compliance: 2011/65/EU
• Lifetime: 50,000h @ Ta = 50°C
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Push-in terminal
• Installation type: Built-in & Independent
• Wire preparation:
  • PRI: 0.75–1.5mm² / 8mm strip
  • SEC: 0.5–1.5mm² / 8mm strip
• Max output cable length: 3m
• Dimensions:
  • Built-in: 143.3 × 31 × 21.5mm
  • Independent: 163.7 × 31 × 21.5mm
• Breaker compatibility @230VAC:
  • Type B: 15–38 units
  • Type C: 24–60 units
  • Type D: 38–96 units
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Secondary switching not permitted
  • Wiring must be protected from shorts to earth
  • Hot plug-in not supported (residual voltage risk)
  • Restart required after LED load connection (via mains or interface)
  • LED module replacement requires power-off and 30s delay before reconnection

Certifications & Standards

• Certifications: CE
• Safety standards:
  • EN 300 330 V2.1.1:2017
  • EN 301 489-1 V2.2.3:2019
  • EN 301 489-3 V2.3.2:2023
  • EN 62479:2010
  • EN 50663:2017
• EMC standards:
  • EN IEC 55015:2019 / A11:2020
  • EN IEC 61000-3-2:2019 / A1:2021
  • EN 61000-3-3:2013 / A2:2021
  • EN IEC 61547:2023
• RED compliance:
  • EN 300 330 V2.1.1:2017
  • EN 301 489-1 V2.2.3:2019
  • EN 301 489-3 V2.3.2:2023
  • EN 62479:2010
  • EN 50663:2017
• Performance standard: EN 62384
