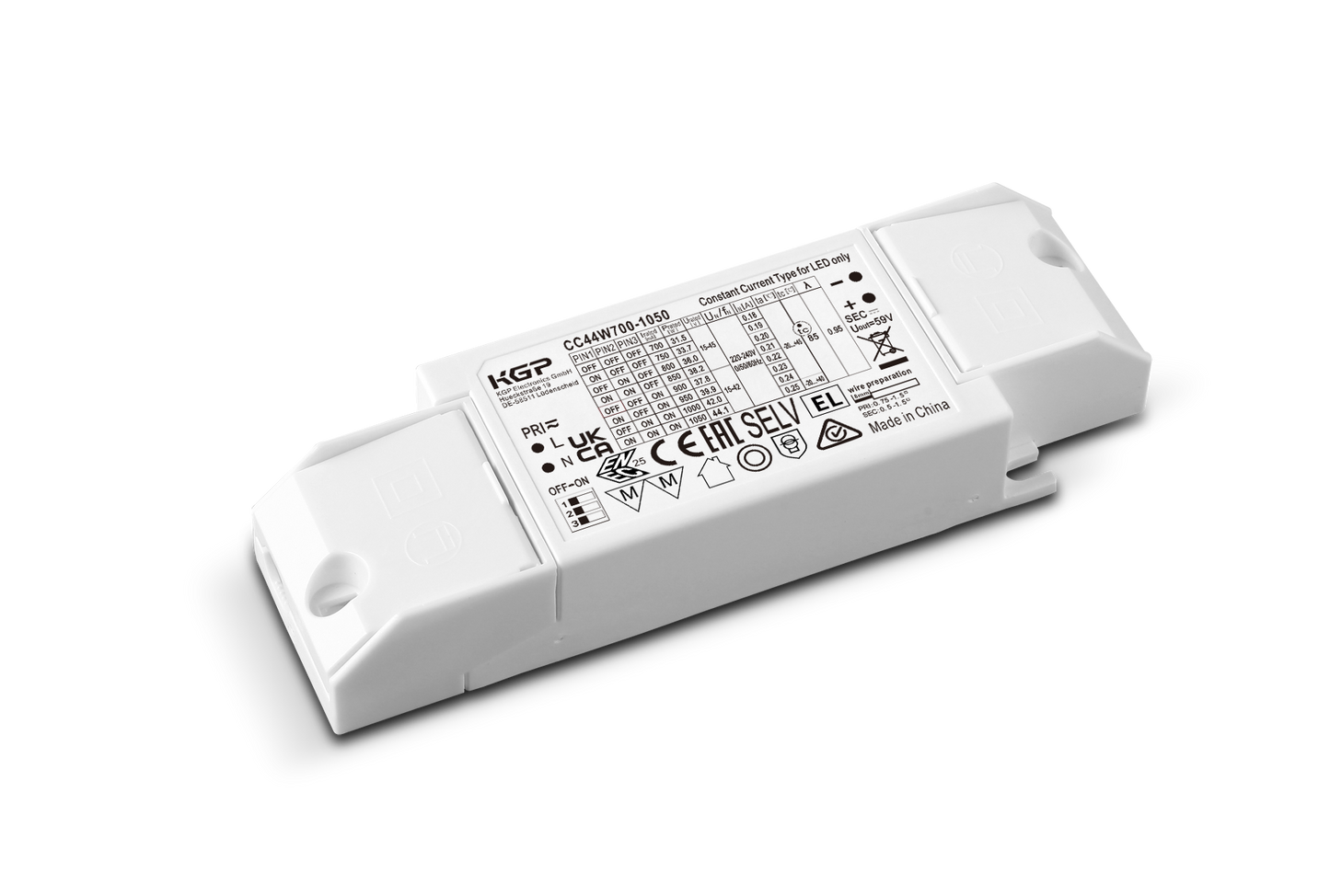

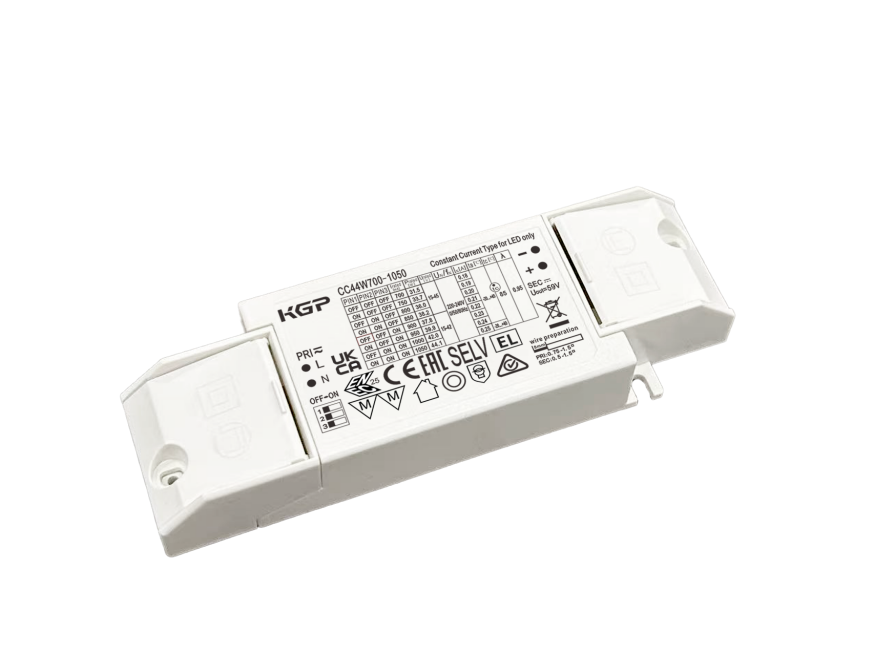

Compact ON OFF DIP - CC21W150-500 / CC30W350-700 / CC44W700-1050

Product Features

• Models:
  • CC21W150-500
  • CC30W350-700
  • CC44W700-1050
• Output type: Constant Current (SELV)
• Input voltage:
  • Rated: 220–240VAC
  • Performance range: 202–254VAC / 186–250VDC
  • Operating safety range: 198–264VAC / 176–288VDC
• Input frequency: 0/50/60Hz (performance: 47–63Hz / safety: 45–66Hz)
• Input current @ full load:
  • CC21W: ≤0.12A
  • CC30W: ≤0.18A
  • CC44W: ≤0.25A
• Input power @ full load:
  • CC21W: ≤26.5W
  • CC30W: ≤36.2W
  • CC44W: ≤50W
• Power factor @ full load:
  • CC21W: ≥0.92
  • CC30W / CC44W: ≥0.95
• THD:
  • ≤20% @ 21W
  • ≤15% @ 30W / 44W
• Inrush current @ 230VAC full load:
  • CC21W: ≤20A / 160μs
  • CC30W: ≤20A / 150μs
  • CC44W: ≤25A / 210μs
• Startup delay time: ≤0.5s
• Ripple current: ±5%
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• Output current accuracy:
  • 150–200mA: ±10%
  • 250–300mA: ±6%
  • 350–500mA: ±8% (15–30VDC), ±5% (30–45VDC)
• Factory default setting: 500mA
• Max output power:
  • CC21W: 22.5W
  • CC30W: 31.5W
  • CC44W: 44W
• No-load voltage: ≤59VDC
• Noise level: ≤20dB @ 30cm (background ≤15dB)

Environmental & Safety

• Operating temperature (Ta):
  • CC21W: –20°C to +50°C
  • CC30W: –20°C to +45°C
  • CC44W:
    • 700–1000mA: –20°C to +45°C
    • 1050mA: –20°C to +40°C
• Storage temperature (Ts): –25°C to +85°C
• Max case temperature (Tc):
  • CC21W: 85°C
  • CC30W: 80°C
  • CC44W: 85°C
• Humidity:
  • Operating: 10%–65% RH
  • Storage: 10%–85% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• Insulation voltage: 3kVAC / 1min
• Insulation resistance: >100MΩ @ 500VDC
• Touch current: <250μA
• Surge protection: L–N / 2kV
• RoHS compliance: 2011/65/EU
• Lifetime:
  • CC21W / CC30W: 100,000h @ Tc = 60°C
  • CC44W: 100,000h @ Tc = 70°C
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Push-in terminal
• Installation type: Built-in & Independent
• Wire preparation:
  • PRI:
    • K33 end cap: 0.75–1.5mm² (solid/stranded, 8–10mm strip)
    • R45 loop-through: 0.5–2.5mm² (solid/stranded, 8–10mm strip)
  • SEC: 0.5–1.5mm² (solid/stranded, 8–10mm strip)
• Max output cable length: 3m
• Dimensions:
  • Built-in: 97.5 × 44 × 23mm
  • Independent: 137.5 × 44 × 23mm
  • Loop-through: 191.6 × 44 × 23mm
• Breaker compatibility @230VAC:
  • CC21W:
    • Type B: 25–63 units
    • Type C: 42–105 units
    • Type D: 69–173 units
  • CC30W:
    • Type B: 25–63 units
    • Type C: 42–105 units
    • Type D: 51–126 units
  • CC44W:
    • Type B: 15–38 units
    • Type C: 25–63 units
    • Type D: 37–92 units
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Secondary switching not permitted (except constant voltage)
  • Wiring must be protected from shorts to earth
  • Incorrect wiring may damage LED modules

Certifications & Standards

• Certifications: CE / ENEC / SAA / UKCA / EAC / RCM / EL
• Safety standards:
  • EN61347-1:2015
  • EN61347-2-13:2014/A1:2017
  • EN62493:2015
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC standards:
  • EN55015:2019/A11:2019
  • EN61000-3-2:2019
  • EN61000-3-3:2013/A1:2019
  • EN61547:2009
