Compact ON OFF A36 series

Product Features

• Type: Constant Current LED Driver (SELV insulated output)
• Voltage Input: 220–240VAC
  • Operating range: 198–264VAC / 220–280VDC
• Frequency: 50/60Hz
• Power Factor: ≥0.95 @ full load
• THD: ≤12% @ full load
• No-load Power Consumption: ≤0.5W
• Start Delay Time: ≤0.5s @ full load
• Ripple Current (<120Hz): ≤ ±5%
• Current Accuracy: ±5%
• Protection:
  • Short Circuit: Auto Recovery
  • Overload: Auto Recovery
  • No-load: Auto Recovery
• Noise Level: ≤24dB (@ background ≤18dB, measured at ≥15cm)
• PstLM: ≤1
• SVM: ≤0.4

Output Specifications

• CC15W350CGA36(-1):
  • 350mA / 15–42V / Max 14.7W / No-load: 55V / Efficiency: 86%
• CC18W300CGA36(-1):
  • 300mA / 23–60V / Max 18W / No-load: 80V / Efficiency: 86%
• CC18W450CGA36(-1):
  • 450mA / 13–40V / Max 18W / No-load: 55V / Efficiency: 86%
• CC18W700CGA36(-1):
  • 700mA / 9–26V / Max 18.2W / No-load: 39V / Efficiency: 84.5%
• CC21W500CGA36(-1):
  • 500mA / 15–42V / Max 21W / No-load: 55V / Efficiency: 86%
• CC24W300CGA36(-1):
  • 300mA / 35–80V / Max 24W / No-load: 100V / Efficiency: 85.5%
• CC25W600CGA36(-1):
  • 600mA / 15–42V / Max 25.2W / No-load: 55V / Efficiency: 87%
• CC30W700CGA36(-1):
  • 700mA / 15–42V / Max 29.4W / No-load: 55V / Efficiency: 87%
• CC34W800CGA36(-1):
  • 800mA / 15–42V / Max 33.6W / No-load: 55V / Efficiency: 88.5%
• CC38W900CGA36(-1):
  • 900mA / 15–42V / Max 37.8W / No-load: 55V / Efficiency: 89%
• CC42W1000CGA36(-1):
  • 1000mA / 15–42V / Max 42W / No-load: 55V / Efficiency: 89%

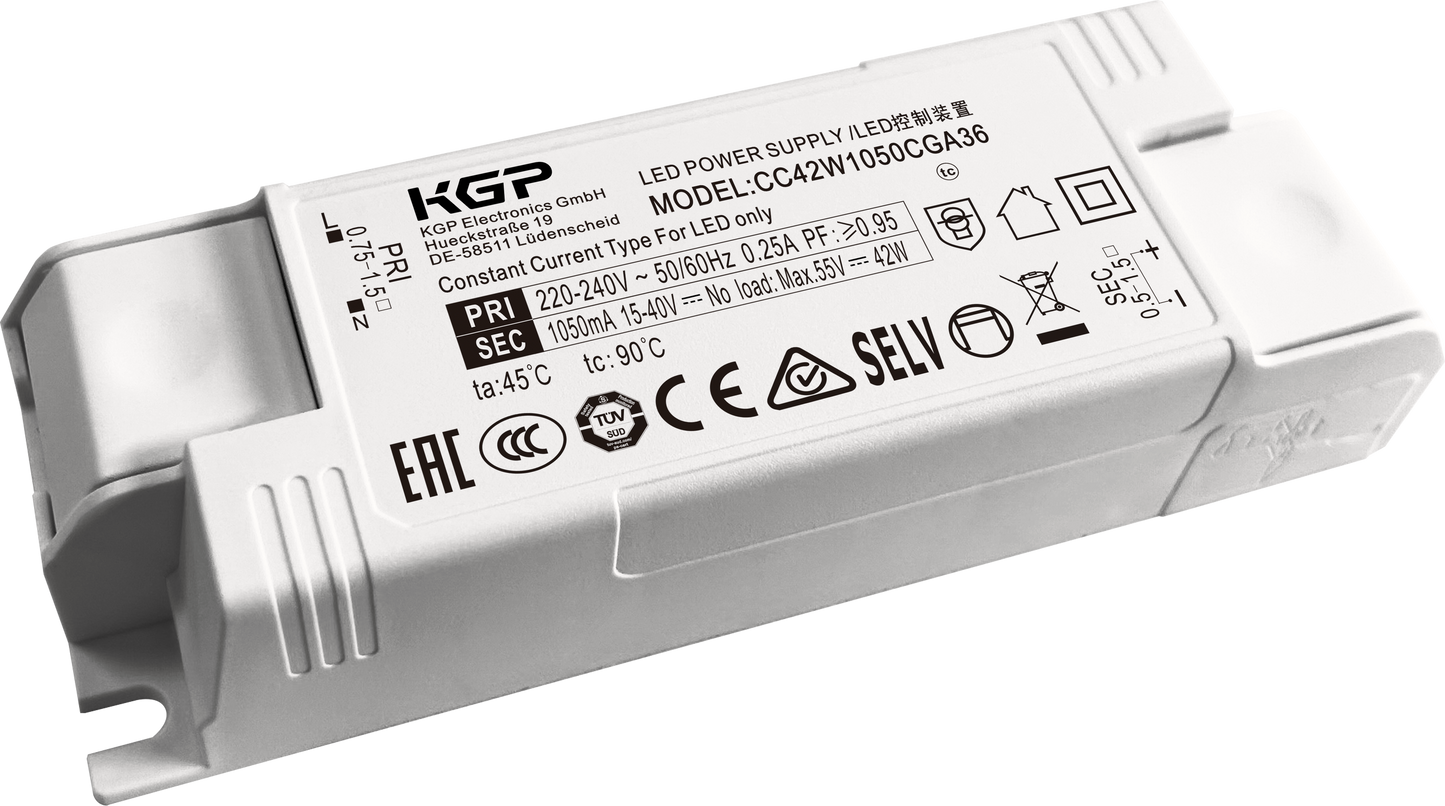

• CC42W1050CGA36(-1):
  • 1050mA / 15–40V / Max 42W / No-load: 55V / Efficiency: 89%

Environmental & Safety

• Operating Temp (Ta): –20°C to +45°C
• Storage Temp (Ts): –20°C to +85°C
• Max Case Temp (Tc): 90°C
• Humidity: 10–90% RH (non-condensing)
• Atmospheric Pressure: 86–108kPa
• Insulation Voltage:
  • TUV/CE/SAA: 3kVac / 1min
  • CCC: 3.75kVac / 1min
• Insulation Resistance: >100MΩ @ 500VDC
• Leakage Current: <250µA
• Surge Protection: L-N: 2kV
• Lifetime: 50,000 hours @ Ta 45°C / Tc 80°C
• Warranty: 5 years (Failure rate <10,000ppm)

Build & Installation

• Form Factor: 115 × 38 × 25mm
• Connection Method: Push-in terminals
  • PRI wire prep: 0.75–1.5mm²
  • SEC wire prep: 0.5–0.75mm²
• Mounting: Independent
• Wiring Notes:
  • Max output wire length: 3m
  • Secondary switching not permitted
  • Maintain 5–10cm separation between mains and LED leads
  • Wiring must be protected against short circuits to earth
  • Keep connections short to ensure good EMI behavior

Certifications & Standards

• Certifications: TUV, SAA, CCC, CE
• Safety Standards:
  • EN 61347-1:2015
  • EN 61347-2-13:2014/A1:2017
  • EN 62493:2015
  • AS/NZS IEC 61347.2.13:2013
  • AS/NZS 61347.1:2016 Inc A1
• EMC Standards:
  • EN 55015:2013/A1:2015
  • EN 61000-3-2:2014
  • EN 61000-3-3:2013
  • EN 61547:2009
• Performance Standard: EN 62384
• RoHS Compliance: 2011/65/EU
