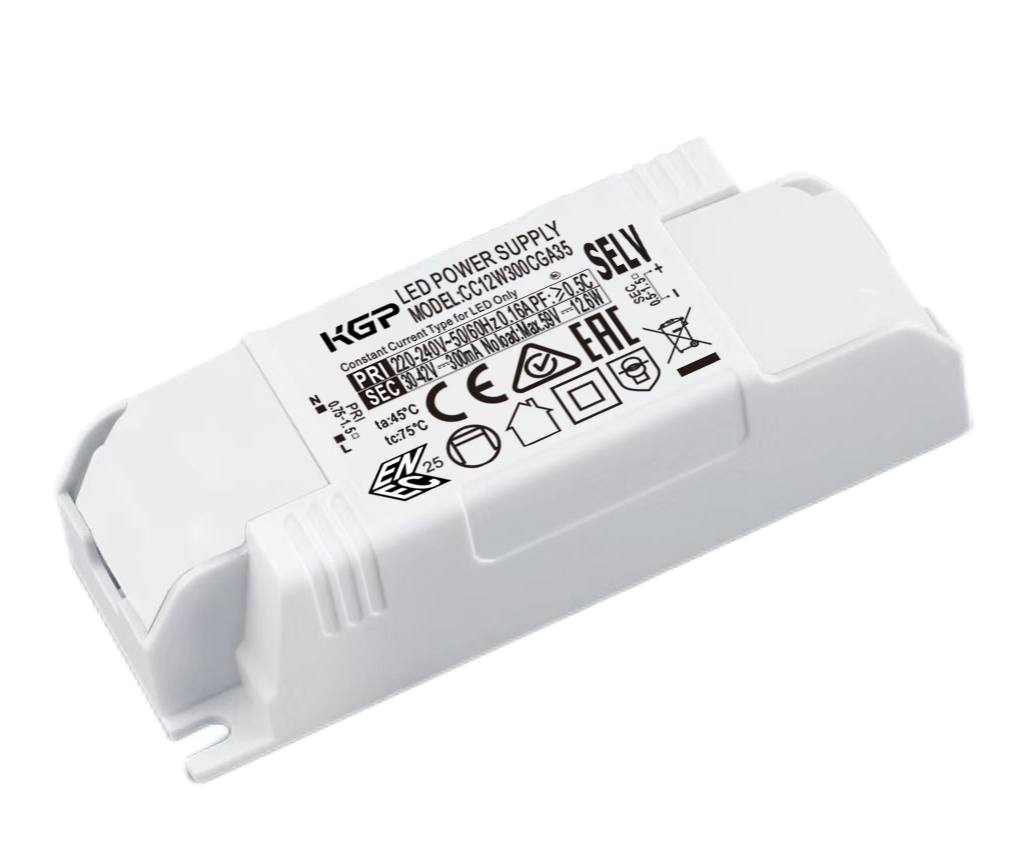

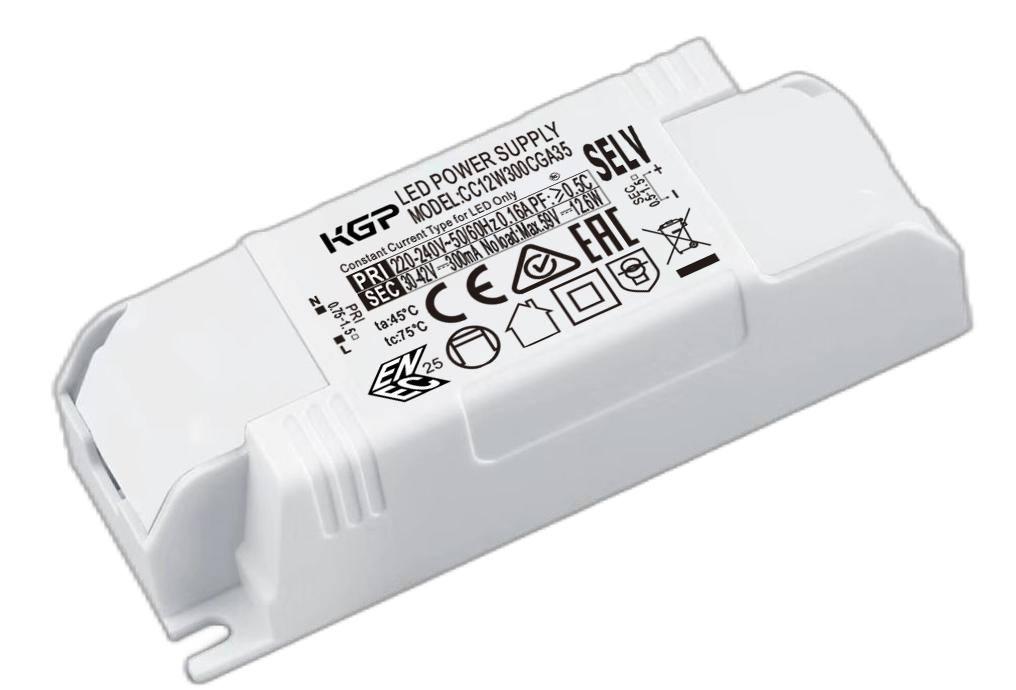

Compact ON OFF A35 series

Product Features

• Type: Constant Current LED Driver (SELV insulated output)
• Voltage Input: 220–240VAC
  • Operating range: 180–264VAC / 220–280VDC
• Frequency: 50/60Hz
• Output Current Options:
  • CC6W150CGA35: 150mA (Max 6.3W)
  • CC9W200CGA35: 200mA (Max 8.4W)
  • CC10W250CGA35: 250mA (Max 10.5W)
  • CC12W300CGA35: 300mA (Max 12.6W)
  • CC15W350CGA35: 350mA (Max 14.7W)
• Efficiency:
  • CC6W: 80%
  • CC9W: 82%
  • CC10W: 83%
  • CC12W: 83%
  • CC15W: 84%
• Power Factor: ≥0.5 @ 230VAC full load
• THD: Conforms to EN61000-3-2
• DF (Displacement Factor): ≥0.7 @ 230VAC
• No-load Power Consumption: ≤0.5W @ 230VAC
• Inrush Current: ≤30A / 400µs @ 230VAC full load
• Current Accuracy:
  • 150–200mA: ±7%
  • 250–350mA: ±5%
• Start Delay Time: ≤0.5s @ 230VAC full load
• Noise Level: ≤24dB (@ background ≤18dB, measured at ≥15cm)
• PstLM: ≤1
• SVM: ≤0.4
• Protection:
  • Short Circuit: Auto Recovery
  • Overload: Auto Recovery
  • No-load: Auto Recovery

Environmental & Safety

• Operating Temp Range (Ta): –20°C to +45°C
• Storage Temp (Ts): –30°C to +85°C
• Max Case Temp (Tc): 75°C
• Humidity: 10–90% RH (non-condensing)
• Atmospheric Pressure: 86–108kPa
• Insulation Voltage: 3kVac / 1min
• Insulation Resistance: >100MΩ @ 500VDC
• Leakage Current: <250µA
• Surge Protection: L-N: 1.5kV
• Lifetime: 30,000 hours @ Ta
• Warranty: 5 years (Failure rate <10,000ppm)

Build & Installation

• Form Factor: 86 × 32 × 23mm
• Connection Method: Push-in terminals
  • PRI wire prep: 0.75–1.5mm²
  • SEC wire prep: 0.5–1.5mm²
• Mounting: Independent
• Wiring Notes:
  • Max output wire length: 3m
  • Secondary switching not permitted
  • Maintain 5–10cm separation between mains and LED leads
  • Wiring must be protected against short circuits to earth
  • Keep connections short to ensure good EMI behavior

Certifications & Standards

• Certifications: ENEC, CCC, SAA, CE, CB
• Safety Standards:
  • EN 61347-1:2015 / A1:2021
  • EN 61347-2-13:2014 / A1:2017
  • EN 62493:2015
• EMC Standards:
  • EN IEC 55015:2019 / A11:2020
  • EN IEC 61000-3-2:2019 / A1:2021
  • EN 61000-3-3:2013 / A2:2021
  • EN IEC 61547:2023
• Performance Standard: EN 62384
• RoHS Compliance: 2011/65/EU
