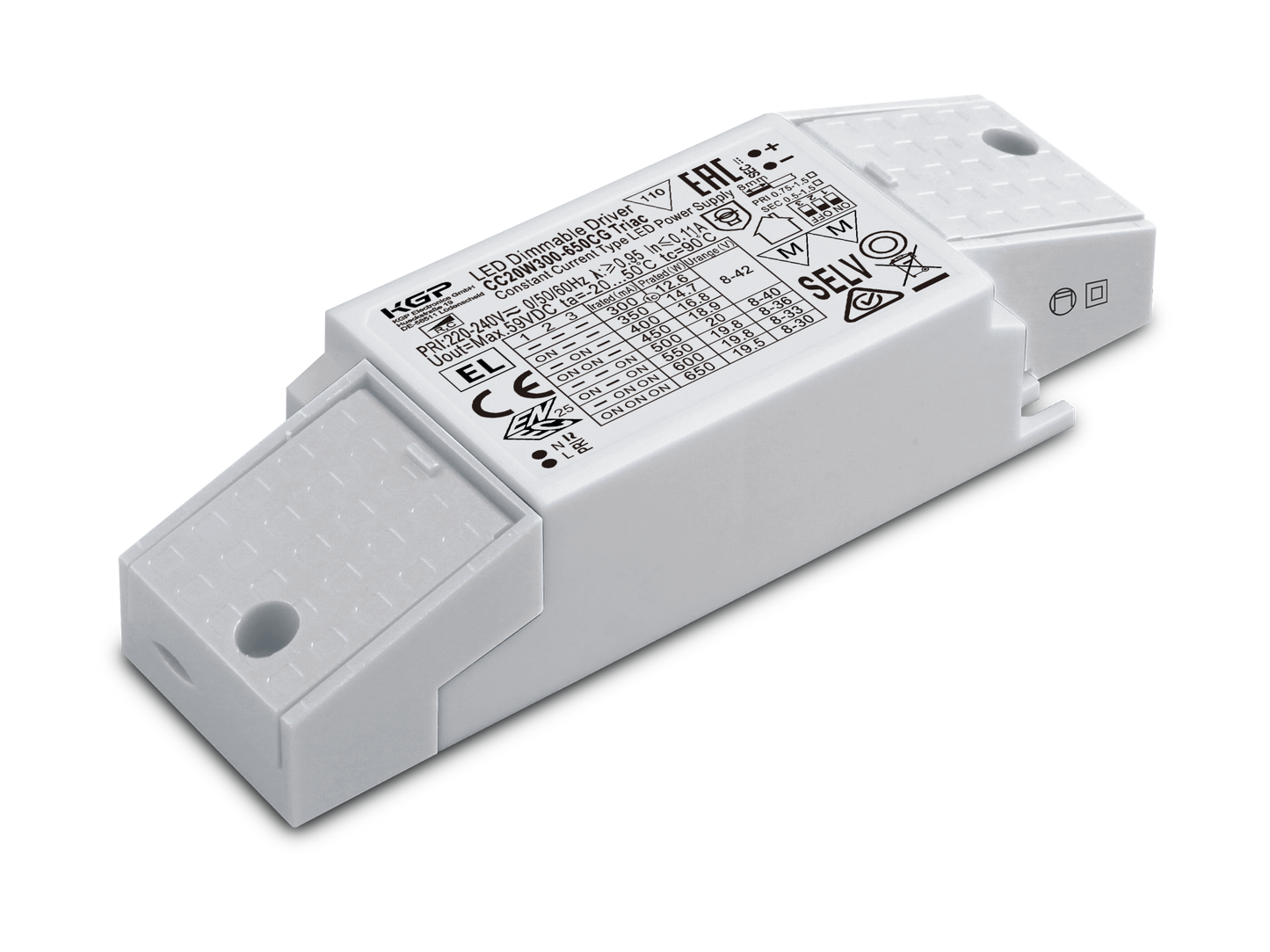

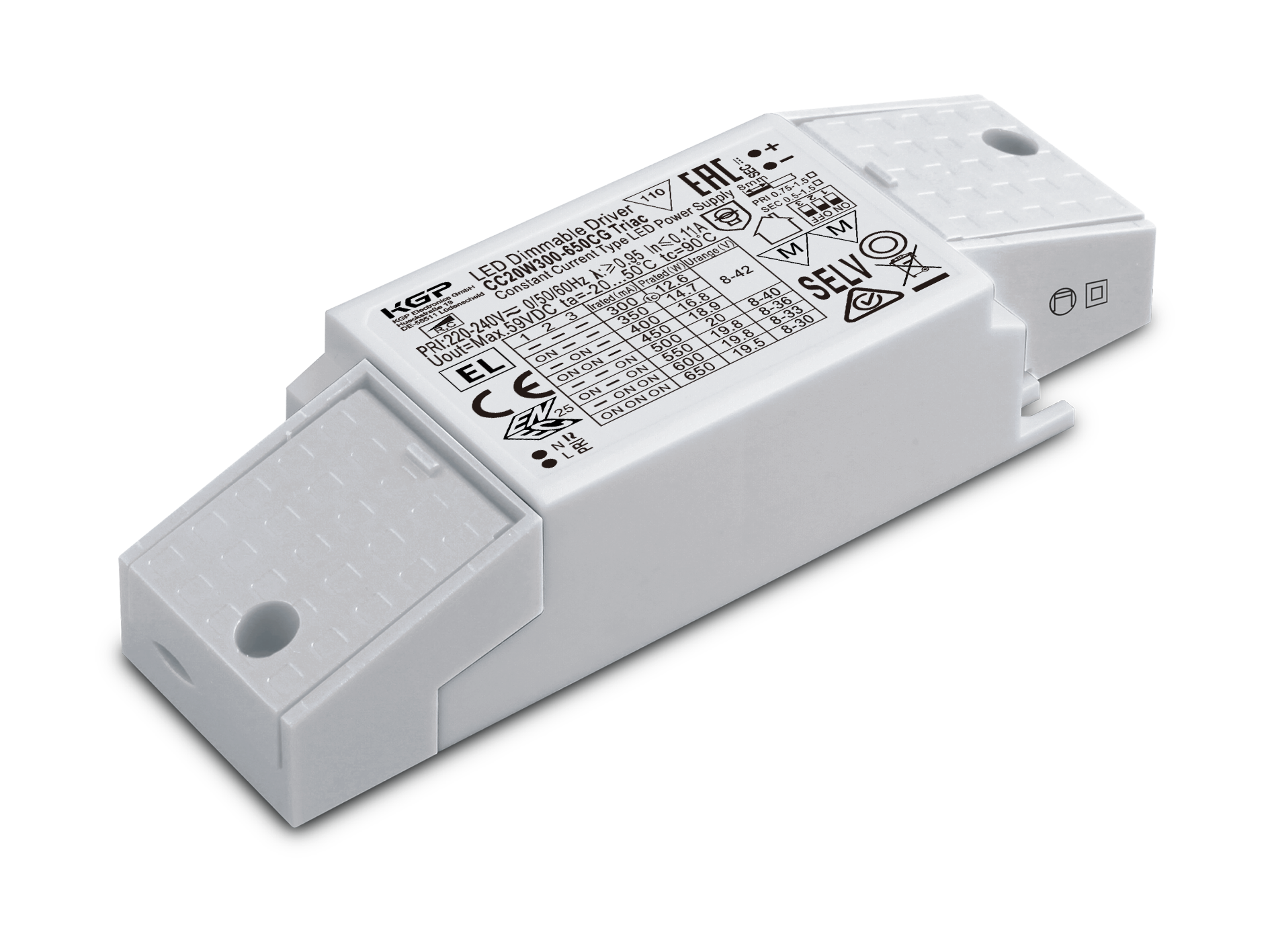

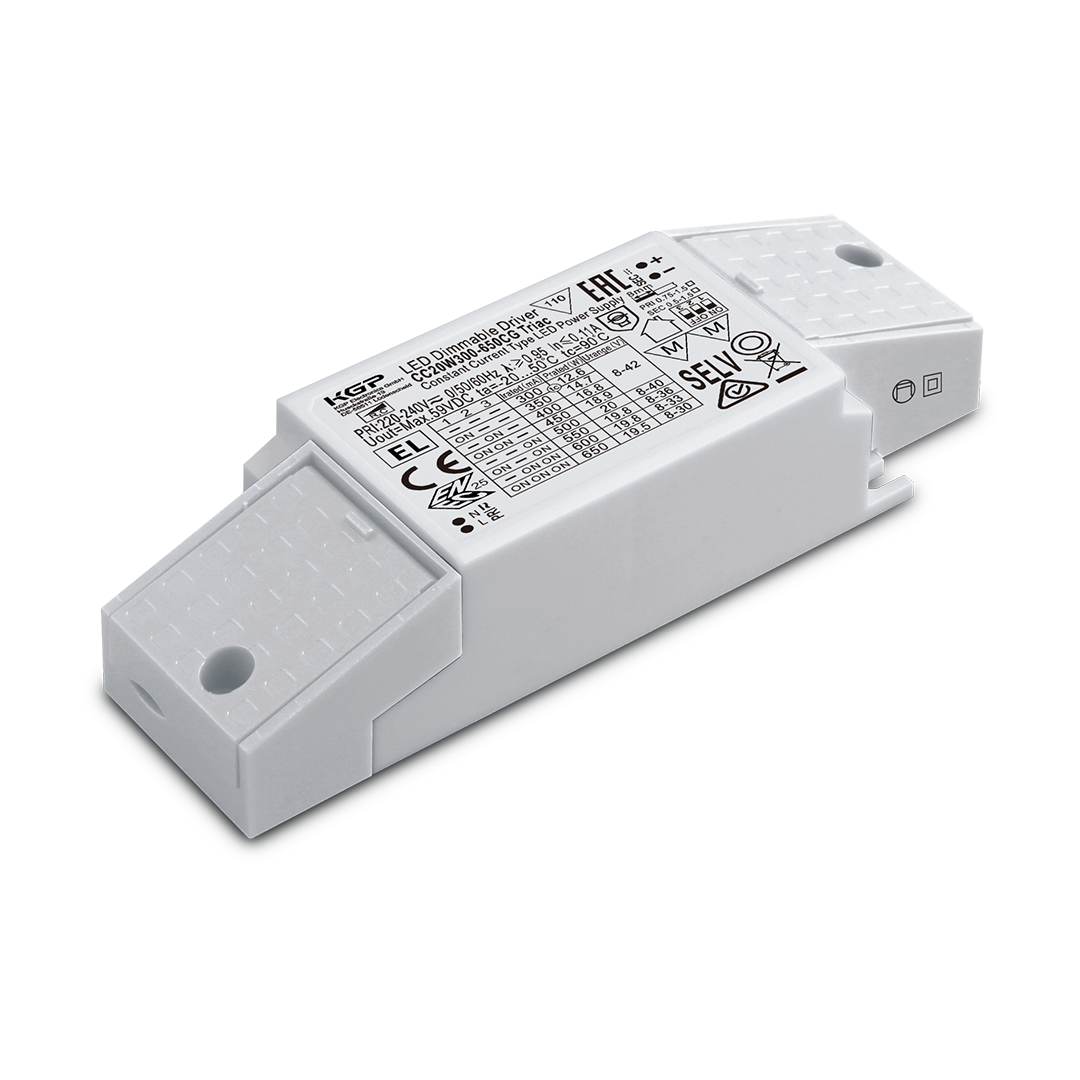

Compact DIP Triac - CC20W300-650CG Triac

Product Features

• Model: CC20W300-650CG Triac
• Output type: Constant Current
• Dimming interface: Phase dimming (Triac – MCU controlled)
• Dimming range: 1%–100%
• Output current settings:
  • 300mA: 2.4–12.6W / PF ≥0.92 / Eff ≥82% / 8–42V
  • 350mA: 2.8–14.7W / PF ≥0.92 / Eff ≥82% / 8–42V
  • 400mA: 3.2–16.8W / PF ≥0.92 / Eff ≥82% / 8–42V
  • 450mA: 3.6–18.9W / PF ≥0.94 / Eff ≥83% / 8–42V
  • 500mA: 4.0–20W / PF ≥0.95 / Eff ≥84% / 8–40V
  • 550mA: 4.4–19.8W / PF ≥0.95 / Eff ≥85% / 8–36V
  • 600mA: 4.8–19.8W / PF ≥0.95 / Eff ≥85% / 8–33V
  • 650mA: 5.2–19.5W / PF ≥0.95 / Eff ≥85% / 8–30V
• Max output power: 20W
• No-load voltage: ≤59VDC
• Input voltage: 220–240VAC (198–264VAC or 180–280VDC)
• Input frequency: 50/60Hz
• Input current: ≤0.11A @ full load
• Input power: ≤25.5W
• Power factor: ≥0.95 typical
• THD: ≤15%
• Ripple current: ±5%
• Output current accuracy: ±5%
• Startup delay time: ≤2s
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• No-load power consumption: ≤1.3W
• Noise level: ≤22dB @ ≥15cm (background ≤18dB)

Environmental & Safety

• Operating temperature (Ta): –20°C to +50°C
• Storage temperature (Ts): –25°C to +85°C
• Max case temperature (Tc): 90°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• Insulation voltage: 3000VAC / 60s / 5mA
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <700μA
• Surge protection: L–N / 2kV
• RoHS compliance: 2011/65/EU
• Lifetime: 50,000h @ Ta/Tc
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Push-in terminal
• Installation type: Built-in or Independent
• Wire preparation:
  • PRI: 0.75–1.5mm²
  • SEC: 0.5–1.5mm²
• Max output cable length: 3m
• Dimensions:
  • Built-in: 88 × 44 × 23mm
• Breaker compatibility (@230VAC):
  • Type B: 40–100 units (10–25A)
  • Type C: 64–160 units
  • Type D: 102–256 units
• Wiring instructions:
  • Keep mains leads separate from LED leads
  • Secondary switching not permitted
  • Hot plug-in not supported
  • Restart required after LED load connection

Certifications & Standards

• Certifications: CE / ENEC / SAA / CB / CCC
• Safety standards:
  • EN61347-1:2015/A1:2021
  • EN61347-2-13:2014/A1:2017
  • EN62384:2020
  • EN62493:2015
• EMC standards:
  • EN55015:2019/A11:2020
  • EN61000-3-2:2019/A1:2021
  • EN61000-3-3:2013/A2:2021
  • EN61547:2023
