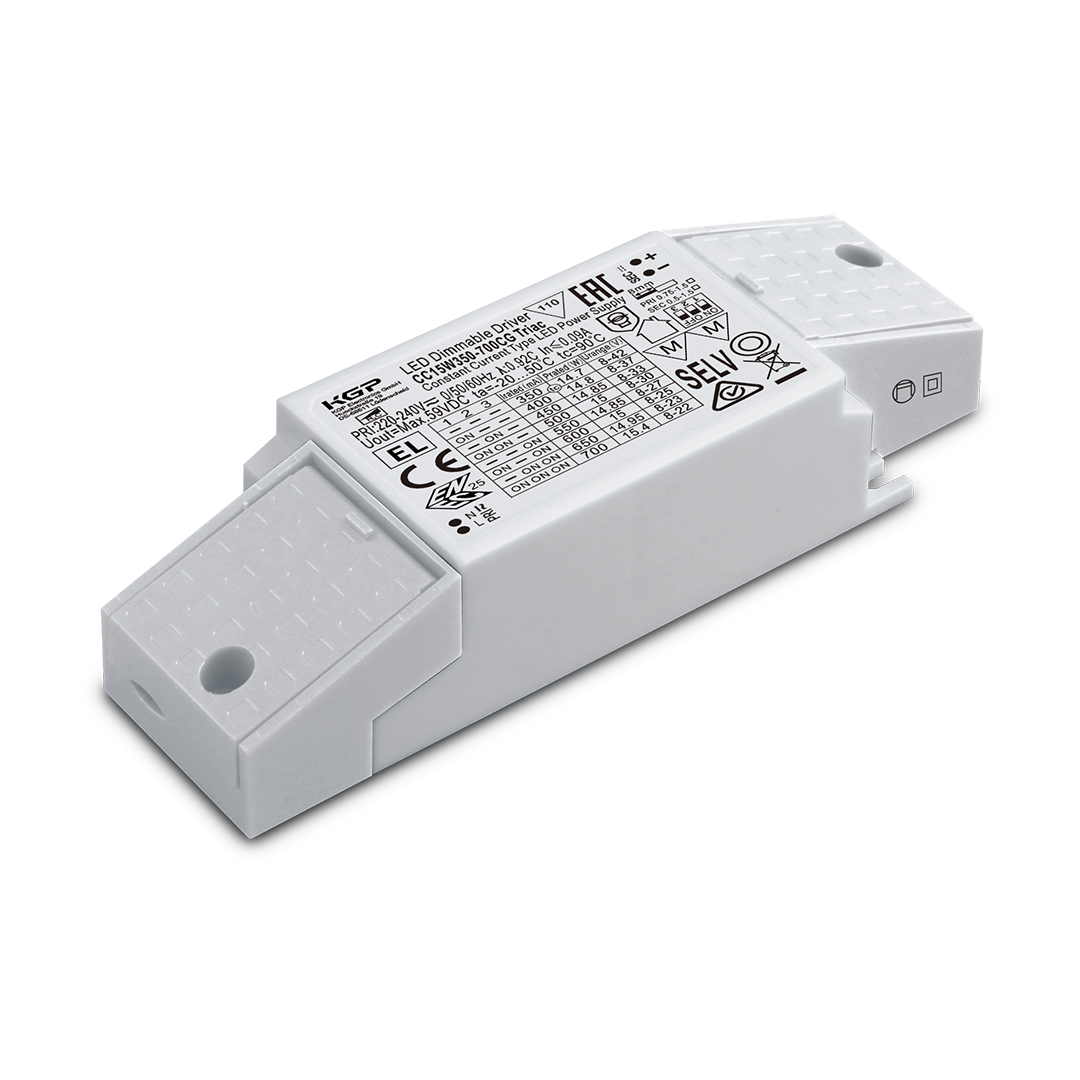

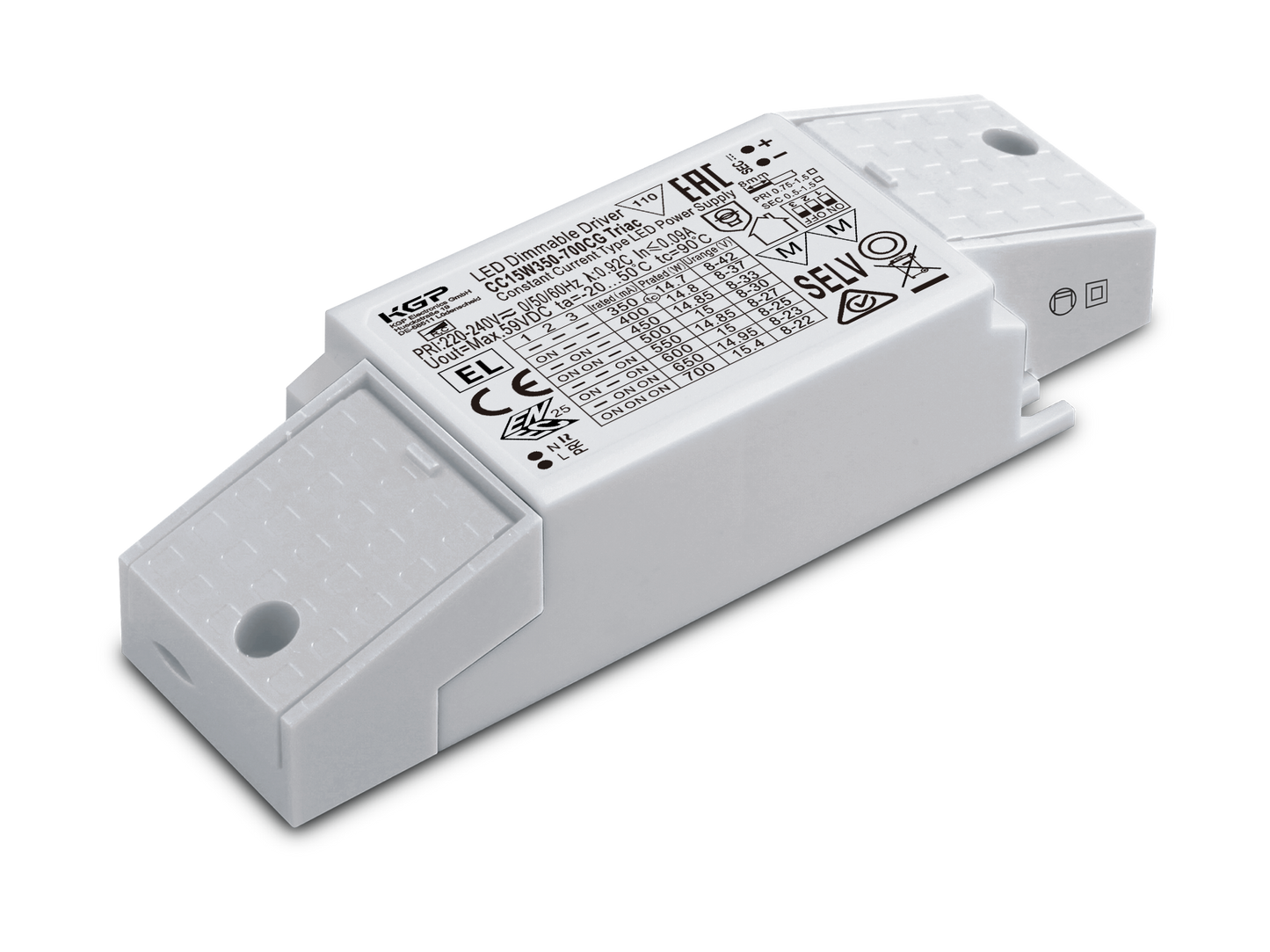

Compact DIP Triac - CC15W350-700CG Triac

Product Features

• Model: CC15W350-700CG Triac
• Output type: Constant Current
• Dimming interface: Phase dimming (Triac – leading/trailing edge)
• Dimming range: 10%–100%
• Output current settings:
  • 350mA: 9.1–14.7W / PF ≥0.92 / Eff ≥81% / 13–21V
  • 400mA: 10.8–15.6W / PF ≥0.92 / Eff ≥81% / 13–21V
  • 450mA: 8.55–13.5W / PF ≥0.92 / Eff ≥81% / 13–21V
  • 500mA: 6–10W / PF ≥0.92 / Eff ≥81% / 12–20V
  • 550mA: 5.5–11W / PF ≥0.92 / Eff ≥81% / 12–20V
  • 600mA: 7.2–12W / PF ≥0.92 / Eff ≥81% / 12–20V
  • 700mA: 8.4–14W / PF ≥0.92 / Eff ≥81% / 12–20V
• Max output power: 15.9W
• No-load voltage: ≤35VDC
• Input voltage: 220–240VAC (198–264VAC or 180–280VDC)
• Input frequency: 50/60Hz
• Input current: ≤0.1A @ full load
• Input power: ≤22W
• Power factor: ≥0.92
• THD: ≤15%
• Ripple current: ±5%
• Output current accuracy: ±5%
• Startup delay time: ≤0.5s
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• No-load power consumption: ≤0.5W
• Inrush current: ≤10A / 13.5μs @ 230VAC full load

Environmental & Safety

• Operating temperature (Ta): –25°C to +50°C
• Storage temperature (Ts): –40°C to +85°C
• Max case temperature (Tc): 85°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• Insulation voltage: 3750VAC / 60s
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <250μA
• Surge protection: L–N / 1kV
• RoHS compliance: 2011/65/EU
• Lifetime: 50,000h @ Ta/Tc
• Warranty: 5 years (F.R. < 10,000ppm)

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Push-in terminal
• Installation type: Built-in or Independent
• Wire preparation:
  • PRI: 0.75–1.5mm²
  • SEC: 0.5–1.5mm²
• Max output cable length: 3m
• Dimensions:
  • Built-in: 88 × 41 × 23mm
  • Independent: 122 × 41 × 23mm
• Breaker compatibility (@230VAC):
  • Type B: 22 units
  • Type C: 36 units
• Wiring instructions:
  • Keep mains leads separate from LED leads
  • Secondary switching not permitted
  • Hot plug-in not supported
  • Restart required after LED load connection

Certifications & Standards

• Certifications: CE / ENEC / SAA
• Safety standards:
  • EN61347-1:2015
  • EN61347-2-13:2014/A1:2017
  • EN62493:2015
• EMC standards:
  • EN55015:2013/A1:2015
  • EN61000-3-2:2014
  • EN61000-3-3:2013
  • EN61547:2009
• Performance standard: EN62384
