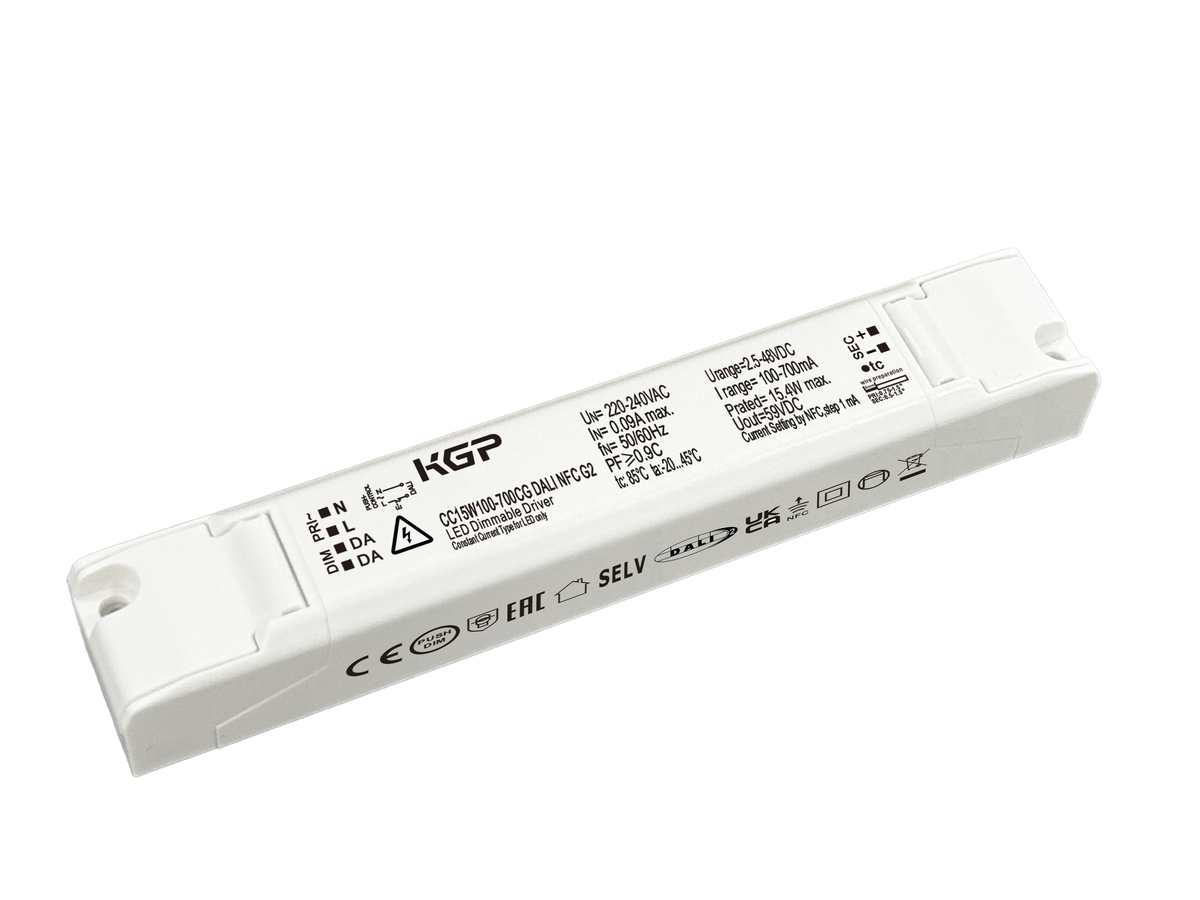

Super Slim NFC DALI - CC15W100-700CG DALI NFC G2

Electric parameters

• Rated Power: 1-15.4W
• Input Voltage: 220-240VAC 50/60Hz (range 198-264VAC)
• DC Operation: 220-240VDC (range 198-280VDC)
• Output Voltage: 2.5-48V
• Output Current: 100-700mA, adjustable in 1mA steps via NFC
• Efficiency: up to 87%
• Power Factor: 0.9 or higher at full load
• Ripple: plus or minus 5%
• THD: 10% or less at full load

Dimming

• DALI-2 and Push DIM
• Dimming range: 1%-100%
• NFC programmable

Protection and operating conditions

• Class II, SELV
• Type of protection: IP20
• Ambient temperature: -20 to +45C
• Maximum temperature at tc point: 85C
• Expected lifetime: 50,000 hours at Ta=45C

Warranty

• 5 Years

Certificate

• CE/UKCA/EAC/DALI-2/SELV

Dimensions

• 136.8*23.1*21mm (L*W*H)

Application

• Wall lights, spotlights and other compact luminaires
