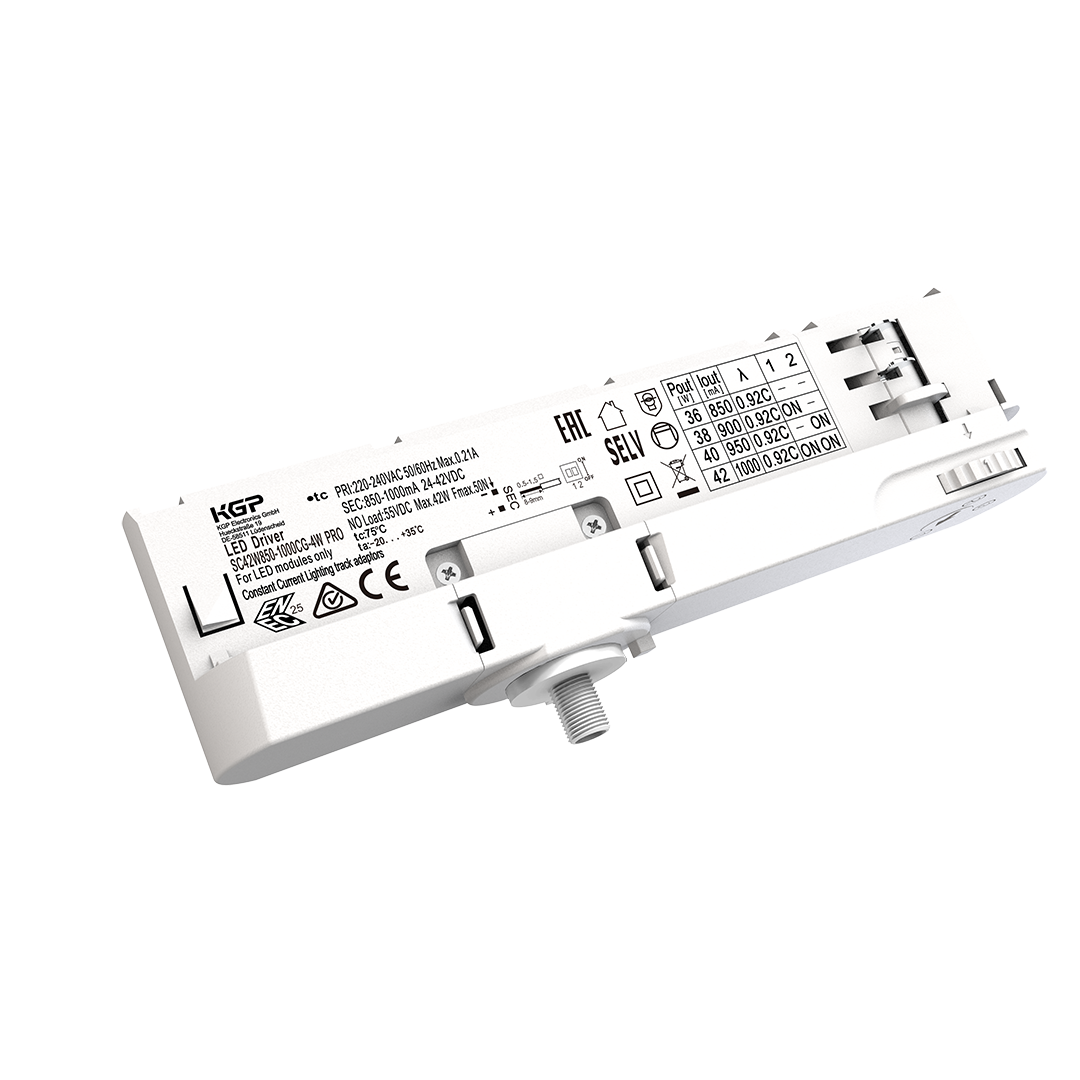

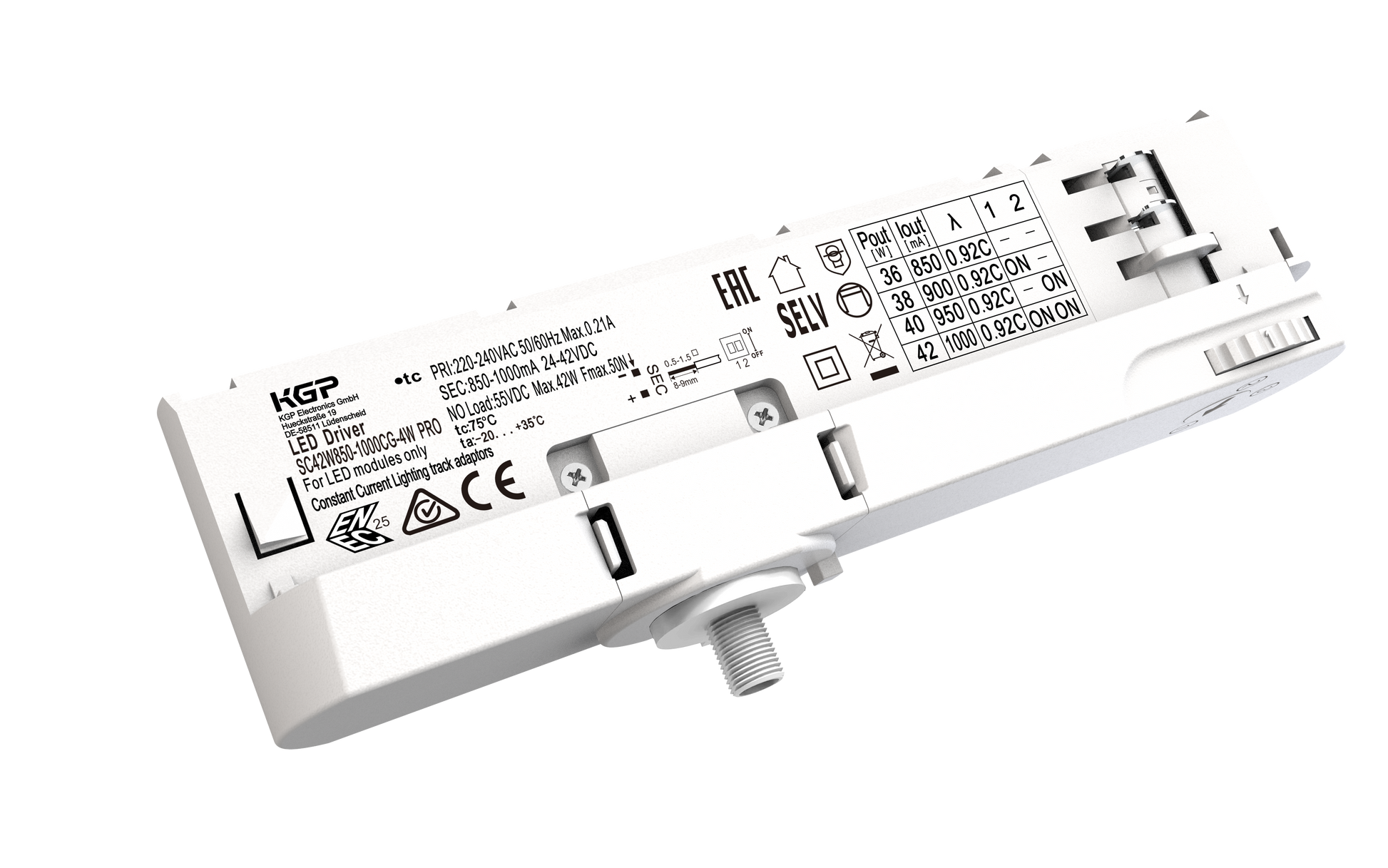

4 Current Setting Intrack ON OFF HE - SC42W850-1000CG-4XPRO

• Product Features

• Model: SC42W850-1000CG-4X PRO
• Output type: Constant Current
• Output current settings:
  • 850mA: 25.5–34.9W / PF ≥0.90 / Efficiency ≥90%
  • 900mA: 27–36.9W / PF ≥0.90 / Efficiency ≥90%
  • 950mA: 28.5–38.9W / PF ≥0.92 / Efficiency ≥91%
  • 1000mA: 30–40.8W / PF ≥0.92 / Efficiency ≥91%
• Output voltage range: 30–42VDC
• No-load voltage: ≤55VDC
• Input voltage: 220–240VAC (198–264VAC or 186–250VDC)
• Input frequency: 50/60Hz
• Input current: ≤0.22A @ full load
• Input power: ≤45W @ full load
• Power factor: ≥0.92 @ full load
• Efficiency: ≥91% @ full load
• THD: ≤7% @ full load
• Ripple current: ≤5% (≤3kHz)
• Output current accuracy: ±5% (220–240VAC), ±8% (198–264VAC)
• Startup delay time: ≤0.5s @ full load
• Flicker metrics: PstLM ≤1 / SVM ≤0.4
• Noise level: ≤20dB @ 30cm, background ≤15dB

Environmental & Safety

• Operating temperature (Ta): –20°C to +35°C
• Storage temperature (Ts): –40°C to +75°C
• Max case temperature (Tc): 75°C
• Humidity range: 10%–90% RH
• Atmospheric pressure: 86–108kPa
• Insulation voltage: 3000V RMS / 60s / 5mA
• Insulation resistance: >100MΩ @ 500VDC
• Leakage current: <0.7mA (I/P to O/P)
• Surge protection:
  • L–N: 2kV
  • L/N–PE: 4kV
• Protection features:
  • Short circuit: Auto recovery
  • Overload: Auto recovery
  • No-load: Auto recovery
• RoHS compliance: 2011/65/EU
• REACH compliance: EC No. 1907/2006
• Lifetime: 63.5k hours @ Tc = 75°C (max failure rate 10%)
• Warranty: 5 years

Build & Installation

• IP rating: IP20
• Insulation class: Class II
• Connection method: Push-in terminal
• Installation type: Independent
• Wire preparation:
  • SEC: 0.5–1.5mm² (solid or stranded)
• Max output cable length: 3m
• Dimensions: 158 × 45 × 31mm
• Breaker compatibility (@230VAC, 13A inrush, 350μs):
  • Type B: 10A – 13 units / 13A – 17 / 16A – 21 / 20A – 27 / 25A – 33
  • Type C: 10A – 21 / 13A – 28 / 16A – 34 / 20A – 43 / 25A – 53
  • Type D: 10A – 34 / 13A – 44 / 16A – 55 / 20A – 68 / 25A – 85
• Wiring instructions:
  • Keep connections short for EMI control
  • Maintain 5–10cm separation from mains leads
  • Secondary switching not permitted (except constant voltage)
  • Wiring must be protected from shorts to earth
  • Hot plug-in not supported (residual voltage risk)
  • Restart required after LED load connection (via mains or interface)

Certifications & Standards

• Certifications: ENEC / SAA / CE / EAC
• Safety standards:
  • EN61347-1:2015/A1:2021
  • EN61347-2-13:2014/A1:2017
  • EN IEC 62384:2020
  • EN 62493:2015/A1:2022
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC standards:
  • EN IEC 55015:2019
  • EN IEC 55015:2019/A11:2020
  • EN IEC 61000-3-2:2019/A1:2021
  • EN 61000-3-3:2013/A2:2021
  • EN IEC 61547:2023
• Performance standard: EN62384
