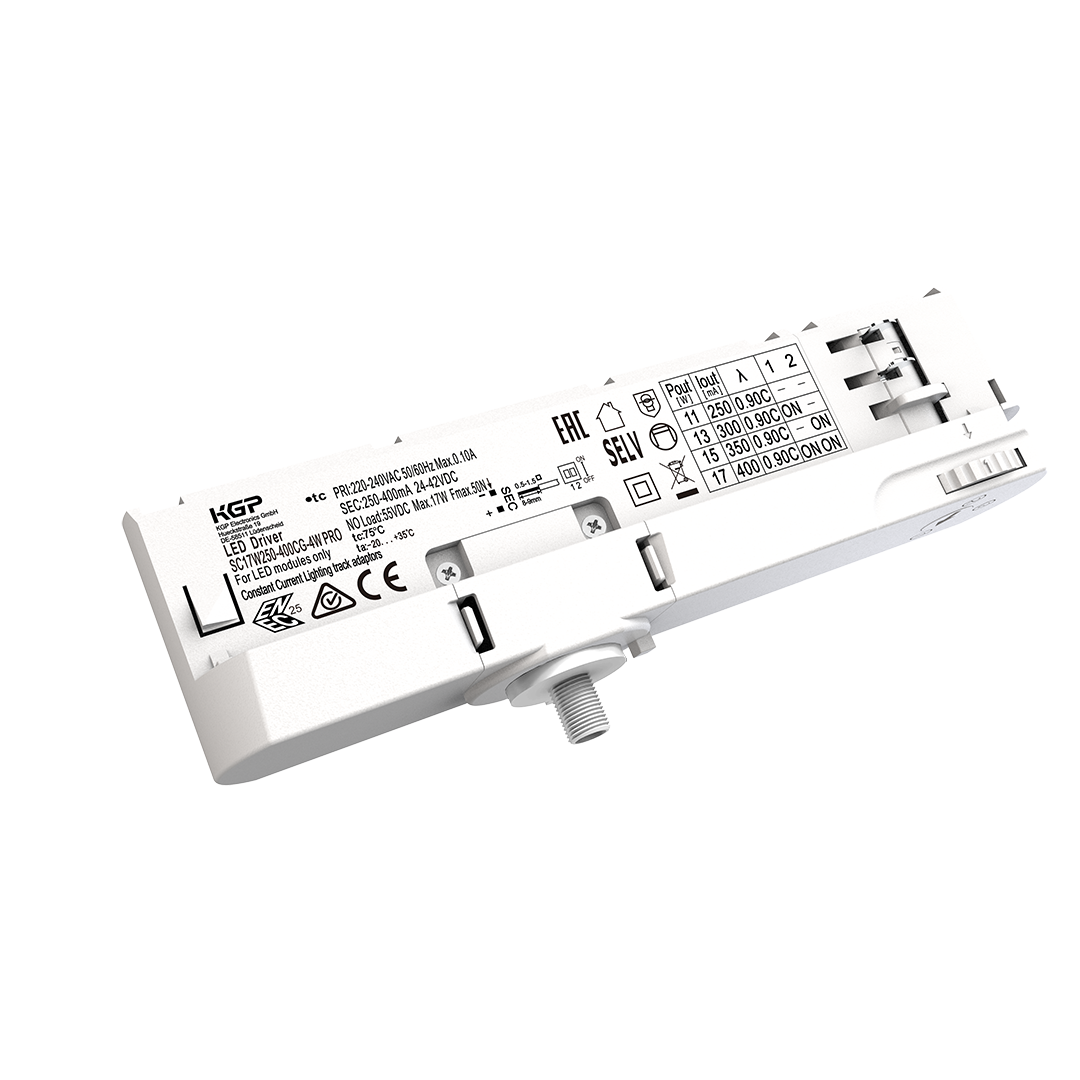

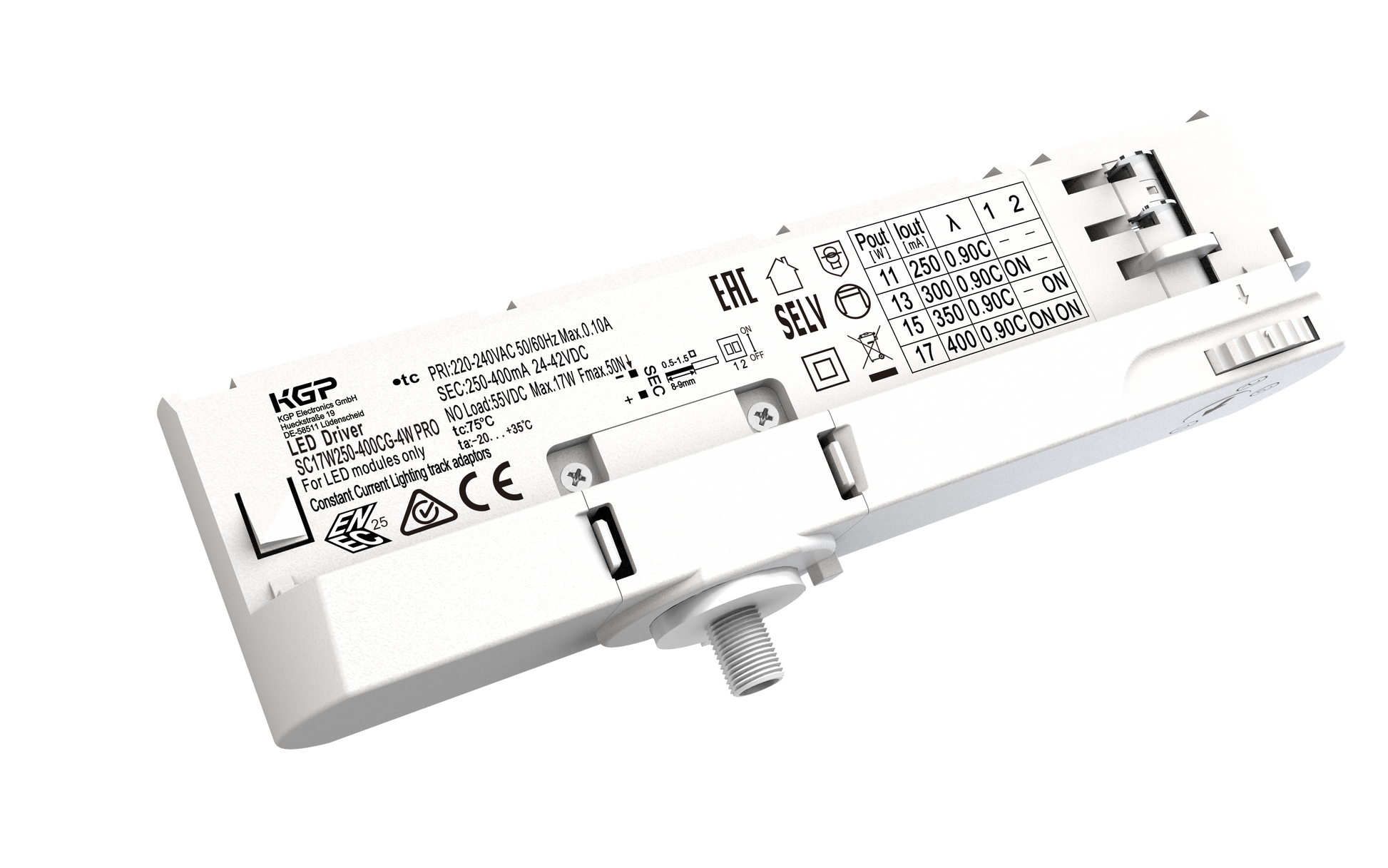

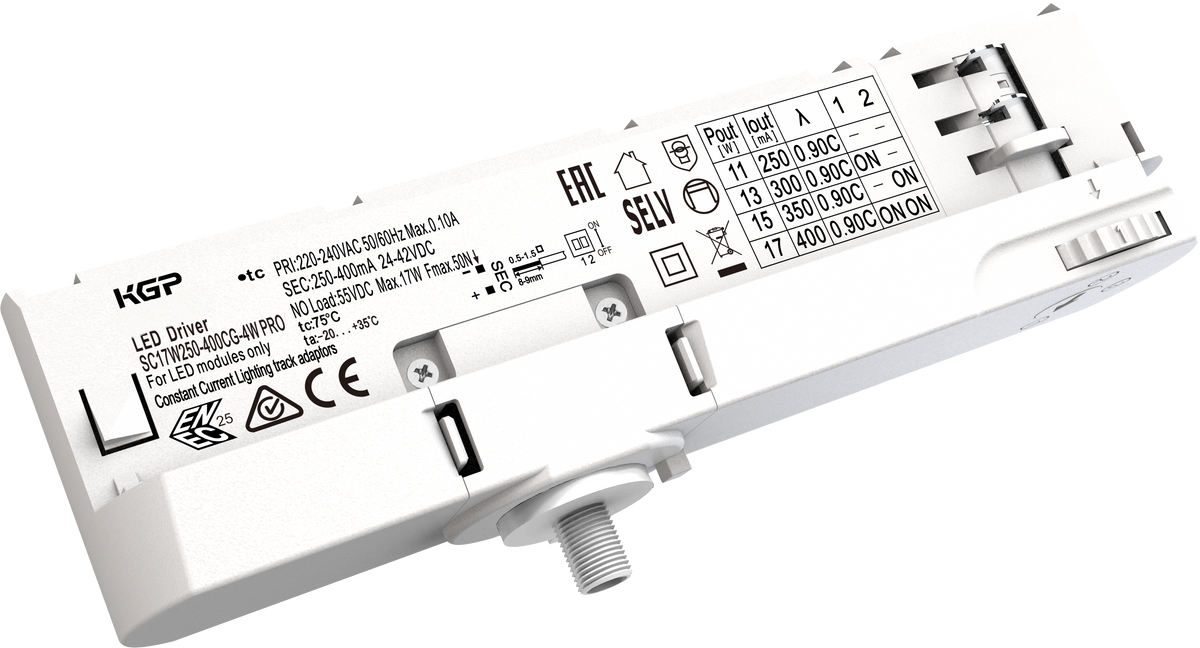

4 Current Setting Intrack ON OFF HE - SC17W250-400CG-4X PRO

Product Features

• Type: Constant Current LED Driver (SELV insulated output)
• Voltage Input: 220–240VAC
  • Operating range: 198–264VAC / 186–250VDC
• Output Current Options:
  • SC17W250-400CG PRO: 250–400mA (Max 16.8W)
  • SC25W450-600CG PRO: 450–600mA (Max 25.2W)
  • SC34W650-800CG PRO: 650–800mA (Max 33.6W)
  • SC42W850-1000CG PRO: 850–1000mA (Max 42.0W)
• Efficiency: Up to 92.5% (typical full load @ 230VAC)
• Power Factor: Up to ≥0.98
• Ripple Current:
  • SC17W: ≤6% (high frequency ripple >3kHz)
  • SC25W–SC42W: ≤5% (low frequency ripple ≤3kHz)
• THD:
  • SC17W: ≤20% @ output power ≥7W
  • SC25W: ≤7% @ full load
  • SC34W: ≤6% @ full load
  • SC42W: ≤5% @ full load
• Current Accuracy:
  • SC17W: ±7% (220–240VAC), ±12% (198–264VAC)
  • SC25W–SC42W: ±5–8%
• Protection: Auto-recovery for short circuit, overload, and no-load
• Start Delay Time: ≤ 0.5s
• Noise Level:
  • SC17W: ≤24dB
  • SC25W–SC42W: ≤20dB
• PstLM: ≤1
• SVM: ≤0.4

 Environmental & Safety

• Operating Temp Range: –20°C to +35°C
• Storage Temp: –40°C to +75°C
• Humidity: 10–90% RH (non-condensing)
• Atmospheric Pressure: 86–108kPa
• Insulation Voltage: 3kVac / 60s
• Insulation Resistance: >100MΩ @ 500VDC
• Leakage Current: <0.7mA
• Certifications: CB, CE, EAC, ENEC, RCM, UKCA, SAA, RoHS, REACH compliant
• Safety Standards:
  • EN 61347-1:2015/A1:2021
  • EN 61347-2-13:2014/A1:2017
  • EN IEC 62384:2020
  • EN 62493:2015/A1:2022
  • AS61347.2.13:2018
  • AS/NZS61347.1:2016 Inc A1
• EMC Standards:
  • EN IEC 55015:2019/A11:2020
  • EN IEC 61000-3-2:2019/A1:2021
  • EN 61000-3-3:2013/A2:2021
  • EN IEC 61547:2023
• Surge Protection: L-N: 2kV, L/N–PE: 4kV
• Lifetime:
  • SC17W: 76,600 hours @ Tc 75°C
  • SC25W: 63,500 hours @ Tc 75°C
  • SC34W: 83,500 hours @ Tc 75°C
  • SC42W: 73,800 hours @ Tc 75°C
• Warranty: 5 years (Failure rate <10,000ppm)

Build & Installation

• Form Factor: 158 × 45 × 31mm
• Connection: Push-in terminals (solid/stranded wires)
  • SEC wire prep: 0.5–1.5mm²
• Mounting: Independent
• Wiring Notes:
• Max output wire length: 3m
  • Secondary switching not permitted
  • Maintain 5–10cm separation between mains and LED leads
  • Hot plug-in not supported due to residual output voltage
  • Restart required after connecting LED load (via mains reset or interface)
